Enervex

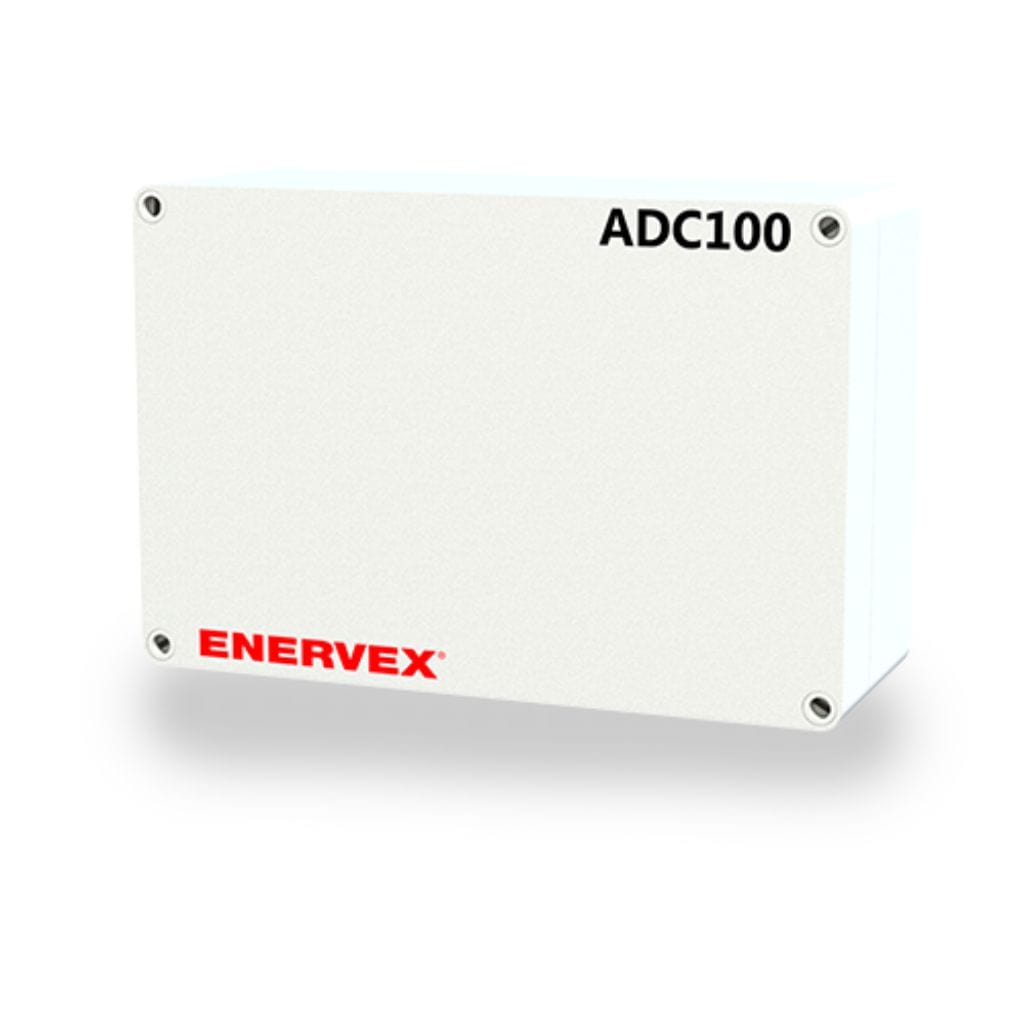

Enervexc - ADC100 Fan Control

Enervexc - ADC100 Fan Control

SKU: 302.0100.1200
Regular price $1,026.00 USD
Regular price Sale price $1,026.00 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Description

The ENERVEX ADC100 Appliance Draft Control is used to control draft in systems where modulation is not required. It controls the speed of the fan to maintain proper pressure in the chimney. The ADC100 is for indoor installations only. The control can be used with Models RS and GSV Fans.
The ADC100 is typically used to control the draft of a gas-fired furnace, fireplace, stove, or pizza oven.

The ADC100 comes with an external PDS. The PDS is a NO/NC switch that monitors the pressure in the chimney.

The ADC100 operates a chimney fan at a set speed to create and maintain proper mechanical draft at the outlet of a heating appliance(s). The control provides a 10-120 VAC signal to single phase fans, as well as a 0-10 VDC signal that can be used to control 3-phase fans by a variable frequency drive.

The ADC100 comes with an external PDS. The PDS is a NO/ NC switch that monitors the pressure in the chimney. In case of inadequate draft, the PDS will open and if open for 15 seconds, the control will go into alarm mode and lock out the appliance until draft is restored.

The control features a manual and automatic adjustment mode which is selected via dipswitch. The PDS check function and manual or automatic reset function are also selected through a dipswitch.

An integrated damper relay allows a damper to be connected directly to the ADC100. The control ensures that the damper is fully open before allowing the appliance to operate by interlocking the damper end-switches to the control. In the event that the controller senses any mechanical failures, the control will initiate a retry sequence.

Material

The enclosure is made of NEMA 1 rated ABS plastic.

Standard Equipment

  • ADC 100 Control Box
  • PDS Proven Draft Switch Box
  • Stack Probe
  • 6' Silicone Tubing

Listings

The ADC100 Fan Control is ETL Listed in the U.S. and Canada:
  • UL 508 Standard for Industrial Control Equipment (17th Ed.)
  • CSA C22.2 No. 14-05- Standard for Industrial Control Equipment

Warranty

2-Year Factory Warranty. Complete warranty conditions are available from ENERVEX Inc.

Features

  • 0-10 VAC control signal and 10-120 VAC for variable speed
  • For indoor installations only
  • For use with RS Fans
  • Includes an external PDS Proven Draft Switch
  • Controls both 1x120V and 3x230V/460V fan (three-phase fans require an EDrive)

Specification

Power Supply 1 x 120VAC
Amperage 6.3A
Control Signals 0-10 VAC (for VFD) and 120/240 VAC (for direct connect)
Output 10-120VAC / 0-10VDC
Control Relays (6) Max 120VAC/8A
EMC Standard Emission: EN50 081-1, Immunity: EN50 081-2
Warranty 2 Years
Listing Certification UL 378, Standard for Draft Equipment
UL 60947, Standard for Industrial Control Panels
CSA C22.2 No. 14-95, Standard for Industrial Control Equipment



Downloads

About The Manufacturer:

ENERVEX provides a full line of listed, fully integrated commercial venting and mechanical draft control systems for a truly one-stop design from boiler outlet to chimney termination. ENERVEX products are economical, environmentally sustainable, aesthetically pleasing, reliable, and up to code for commercial projects around the globe.
