Infratech Solid State Control Package

Save $585.30
InfratechSKU: 30-4051 / 30-4045
No reviews

**Select Relay Panel Box**: 1 Relay Panel
**Select Zone Analog Controller**: 1 Zone Analog Controller
Price:
Sale price$1,951.00 Regular price$2,536.30

Description

FEATURES

  • Comfortable Warmth Anytime. Easily adjust the heating intensity, to achieve the ideal comfort for your space.
  • Zone Heating. The capability to control one or more heaters to heat specified target areas within a large-scale space with a single touch.
  • Ready Project. The Solid State Relay Panel and Zone Analog Controller with Timer included work together and are project-specific
  • Energy efficiency. Timer functions and control options help to optimize the energy consumption.
  • Variety of Options. Choose from one to six Relay Panels as well as from one to four Analog Controllers. Infratech Analog Controllers are available in silver or white finish.
  • Includes the Wiring Scheme. Electrical wiring diagrams are provided for each installation
  • Hight-Quality in Details. Products meets safety and high quality standards. Proudly made in USA, covered with 3 Years Warranty.

PRODUCT OVERVIEW

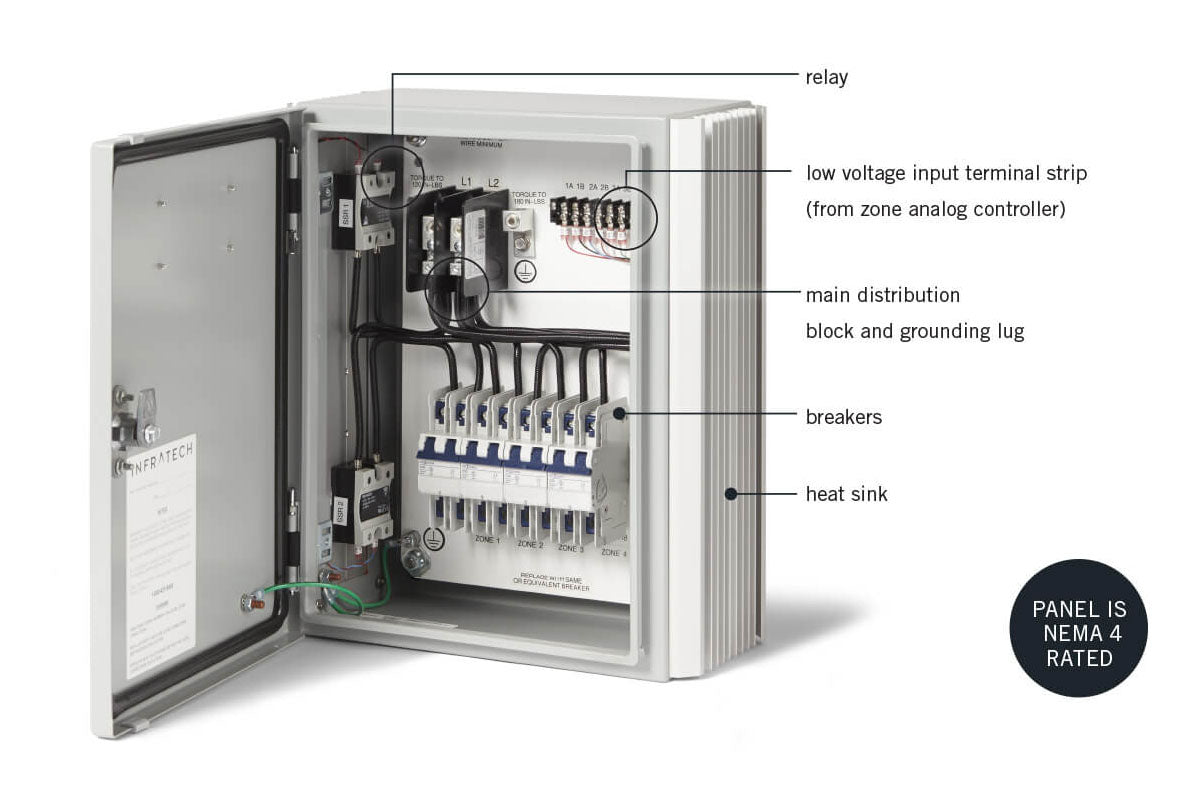

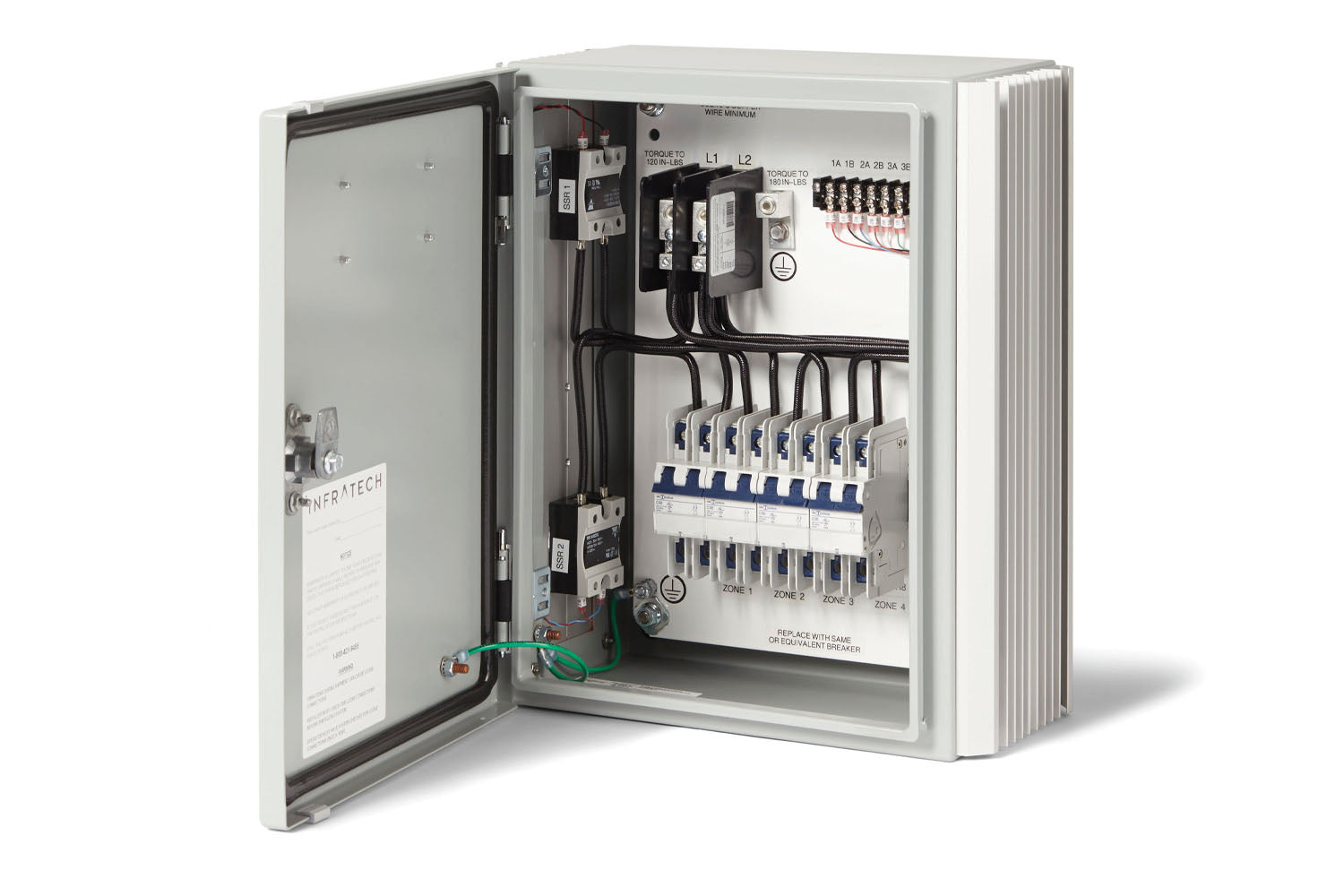

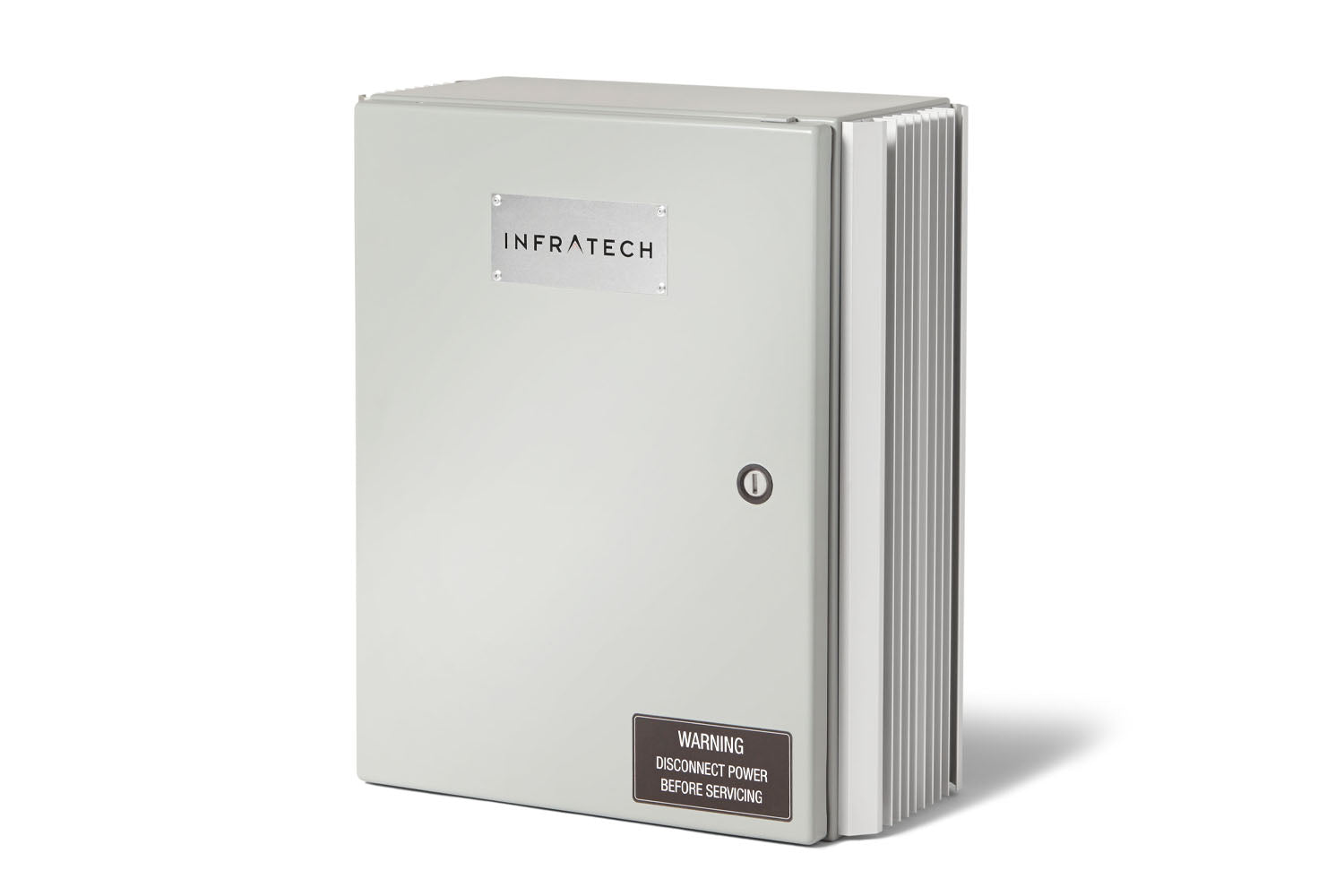

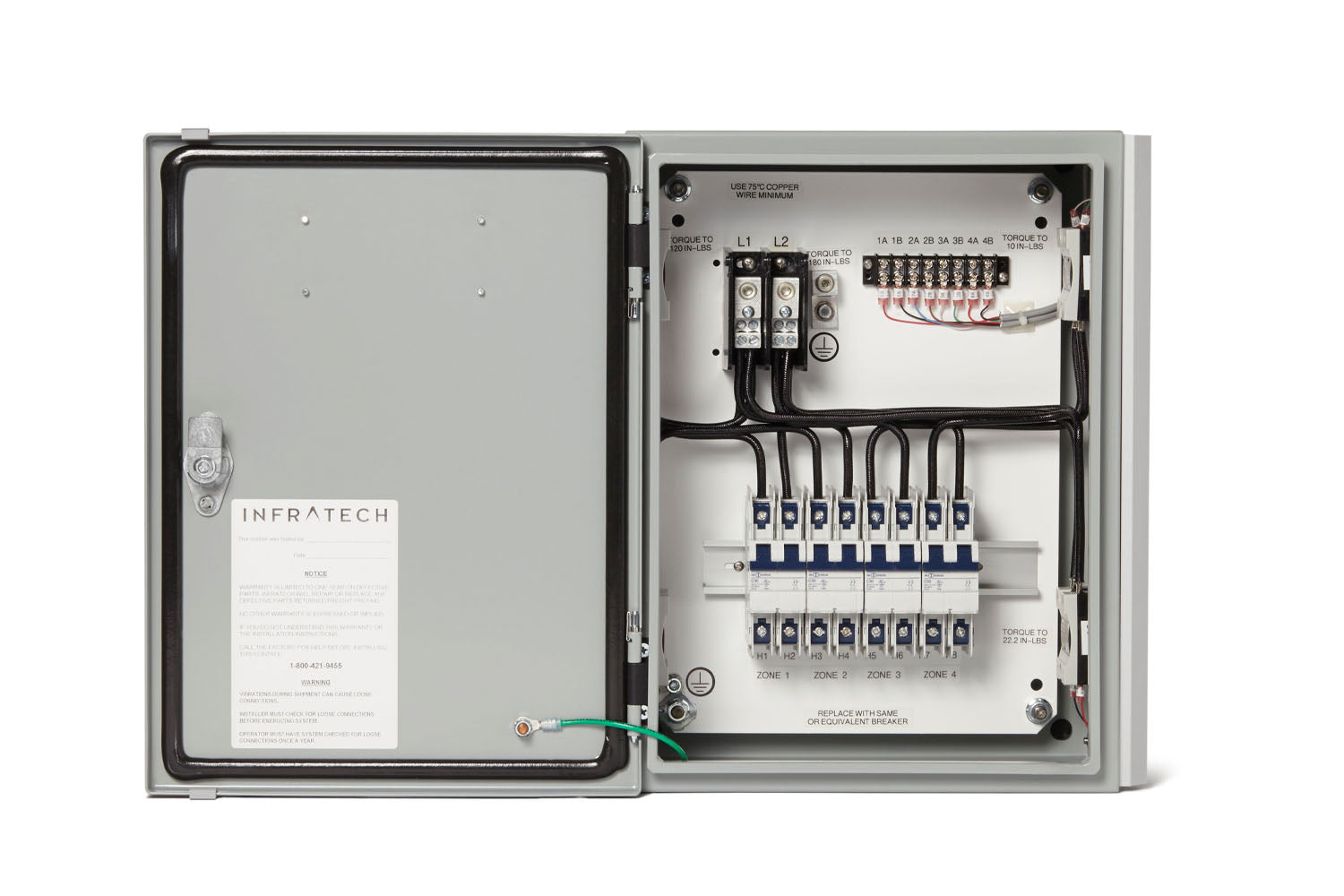

Control multiple heaters in one zone or multiple zones with Infratech Solid State Control Package. Enjoy efficient ease of use with a system configured to meet the needs of any space, from restaurants and nightclubs to stadiums and resorts. Infratech Solid State Control Package is a project-specific control option used for zone heating. Complete Solid State Package includes the Infratech's Relay Panel and Analog Controller. Control panels are available with one to six relays. The number of relays in a control box depends on the power of the heaters within a zone. One relay can handle up to 9,000 Watts at 240 Volts (or 8,000 Watts per Relay at 208 volts). When the sum of the wattage of heaters in one zone is larger than 9,000 Watts or you need more than one zone to be controlled, a 2 Relay (or more) control box might be needed. Please note: do not mix Watts quantity on one relay. All Relay Panels are NEMA 4 RATED, and completely weather resistant.

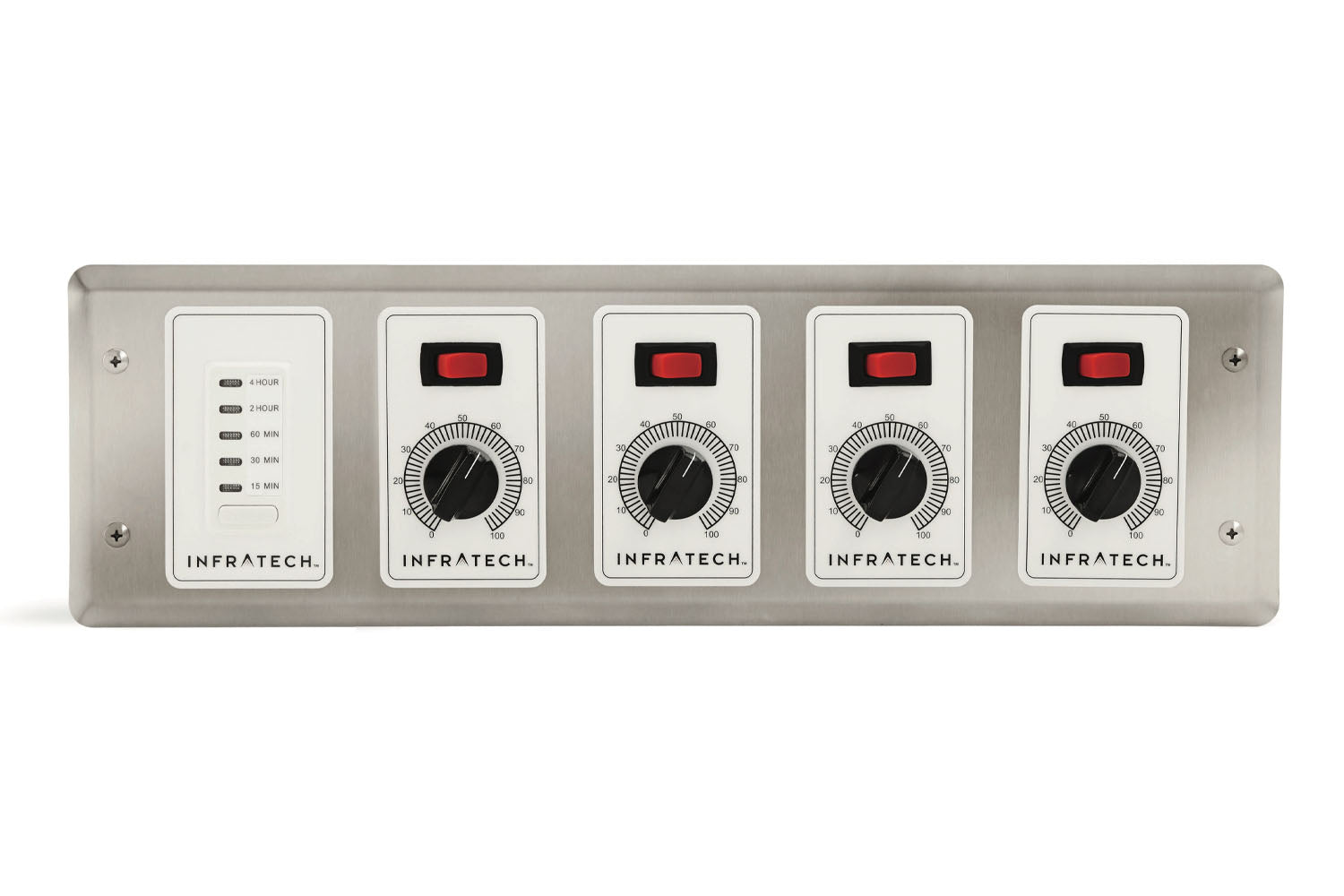

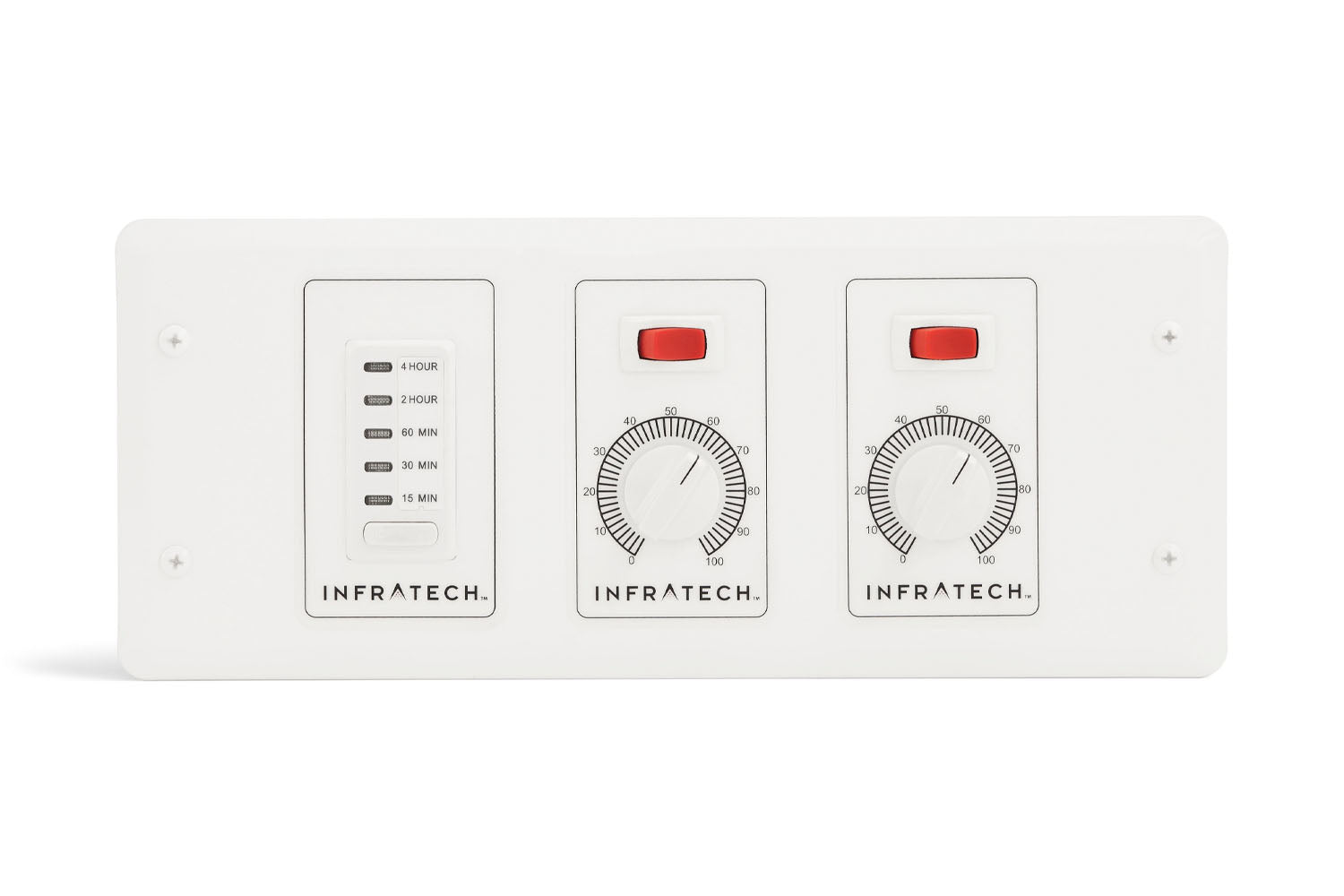

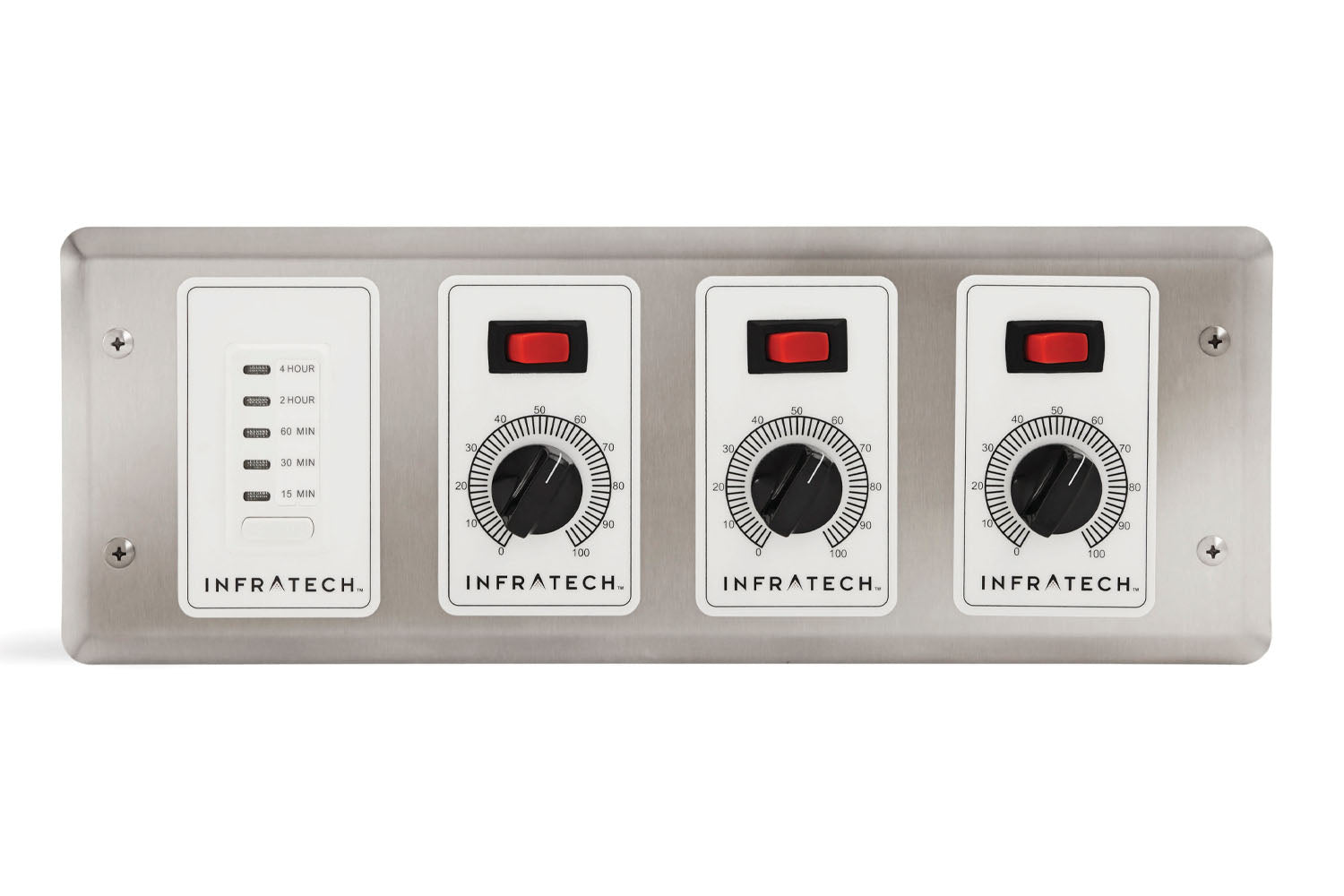

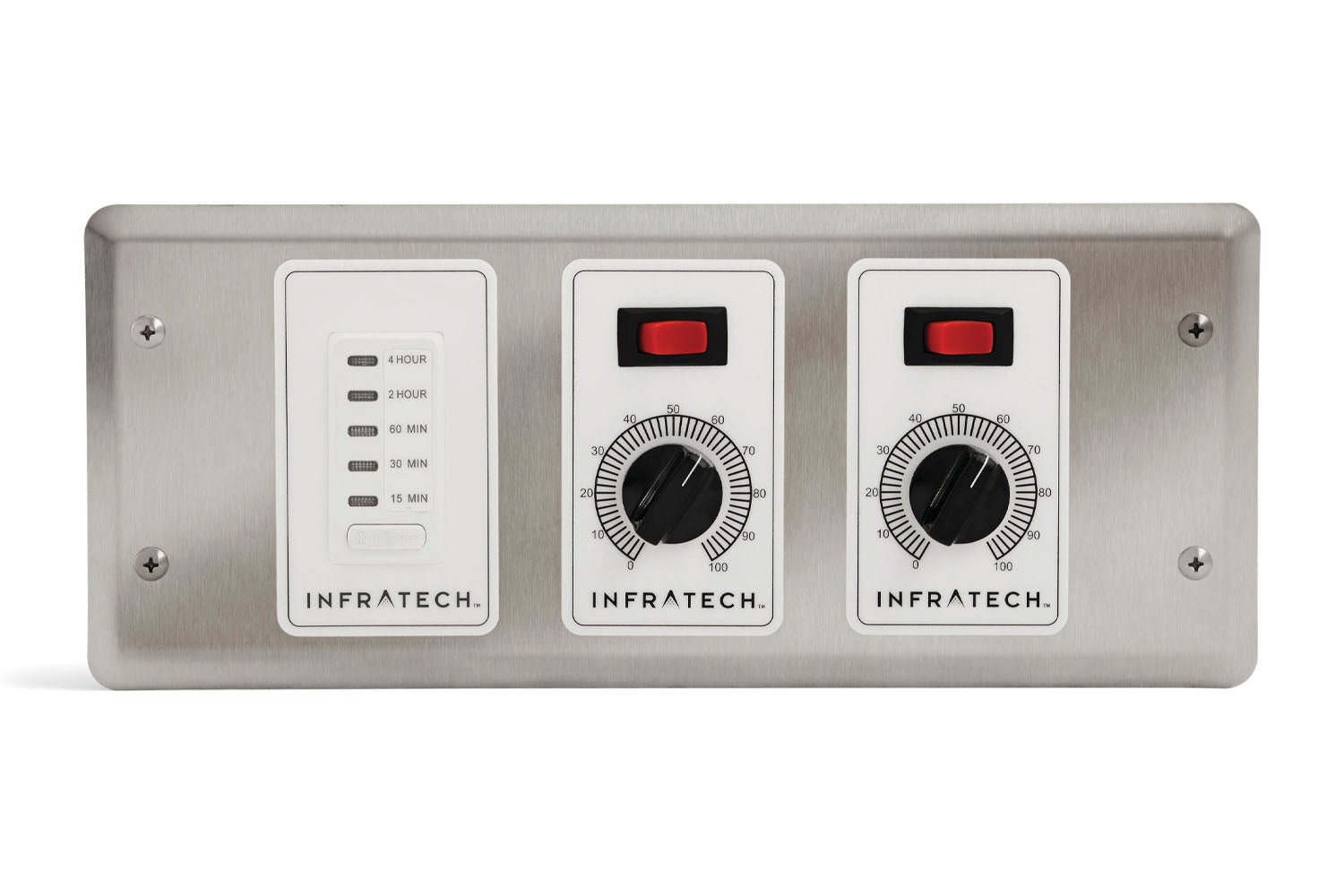

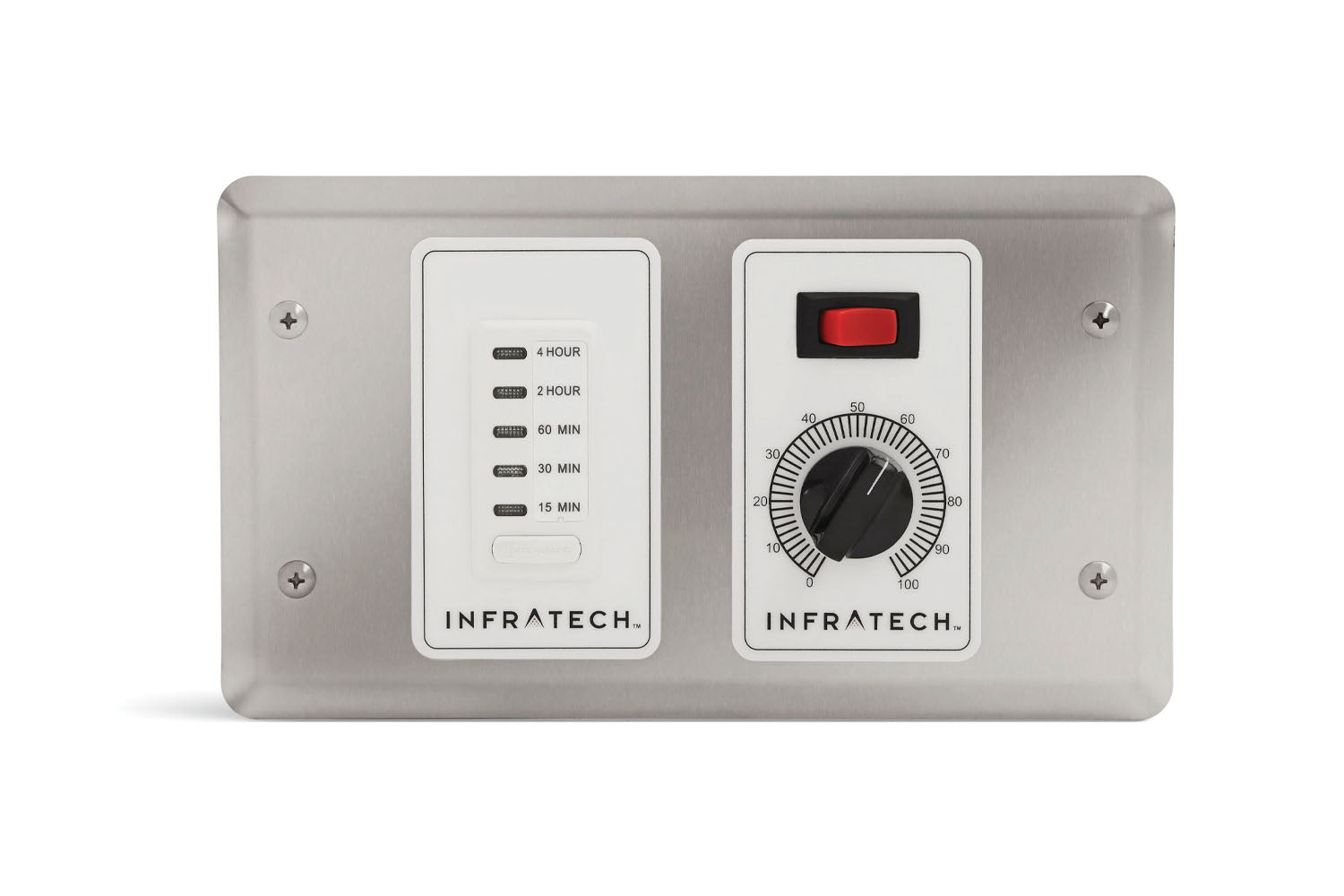

Per each zone or area, one controller is required. The Controller includes a switch to turn the heaters on or off and a knob to adjust the temperature. Each Intensity Control Knob can control a maximum of three relays in the Relay Panel. Infratech Zone Analog Controller includes the Digital Timer to automatically shut off the heaters after 15 mins to 4 hours. This ensures that your staff never has to remember to turn the heating system off at the end of the day. All Zone Analog Controllers are available in silver or white finish. All Controllers are NEMA 12 RATED, and can be exposed to mist, but not direct rain.

The Solid State Control Package comes with electrical wiring diagrams provided for each installation. It is UL-Listed, supported by Infratech’s extensive Three-Year Warranty and made in the USA. Note: please specify the heater model per relay and voltage (Single or Three) phase. Enjoy the ability to adjust the heating intensity, to achieve ideal comfort for any space with the Infratech Solid State Control Package.

WHAT IS INCLUDED

  • Infratech Zone Analog Controller w/ Digital Timer
  • Infratech Relay Panel
ACCESSORY SPECS
Brand Infratech
Model
Material
Plastic/ Metal
Color Steel/White
Installation Dimensions n/a
Warranty 3 years
