New Dimplex Revillusion Portrait 36 inch Built-In Electric Firebox w/ Glass and Plug Kit | Herringbone Brick

New Dimplex Revillusion Portrait 36 inch Built-In Electric Firebox w/ Glass and Plug Kit | Herringbone Brick

SKU: SKU:REV36P-HB

Regular price $2,764.99 USD
Regular price Sale price $2,764.99 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Description

PRODUCT DESCRIPTION & FEATURES

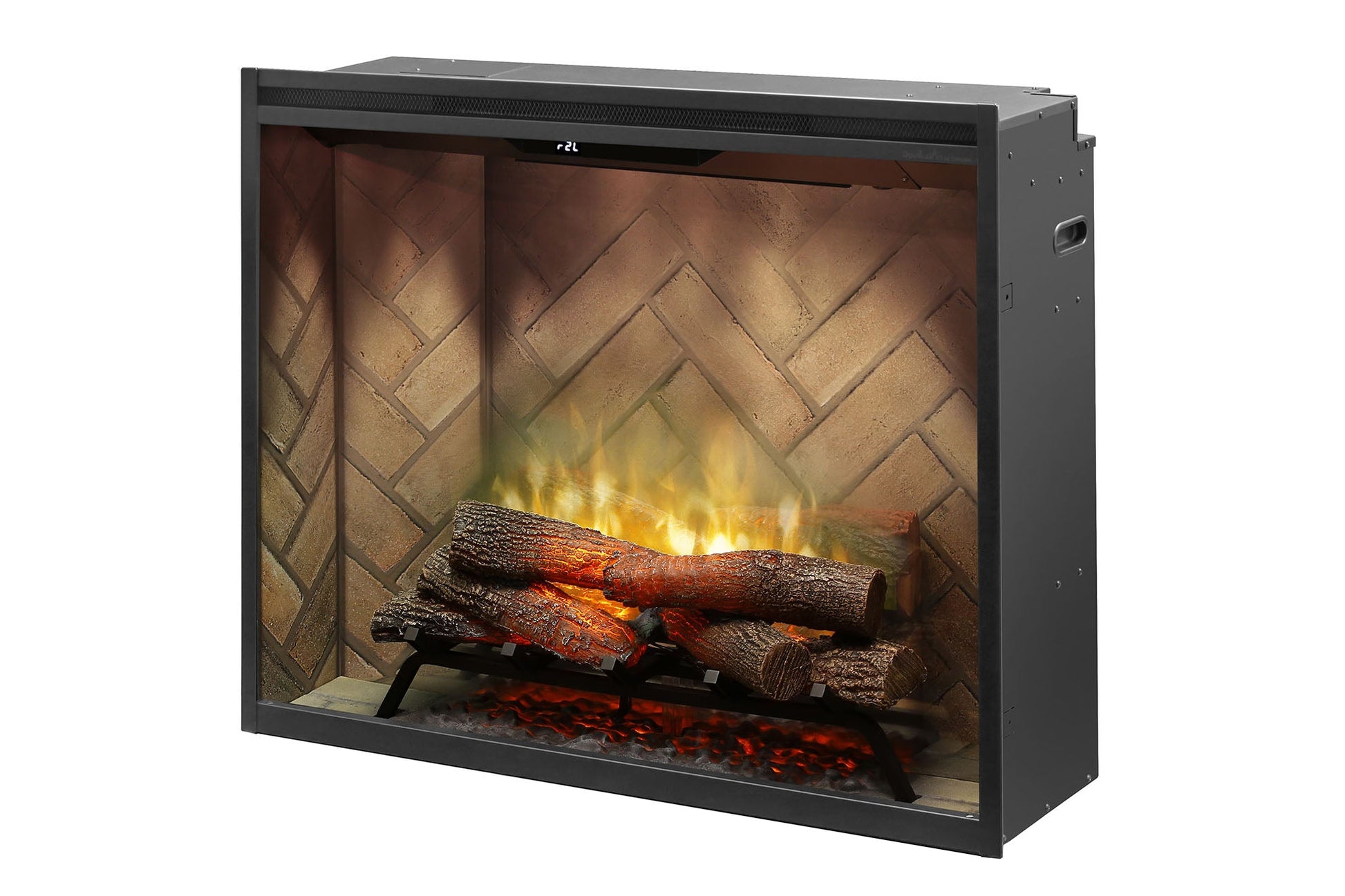

The Revillusion Portrait  36-inch Electric Fireplace / Firebox is a completely new way of looking at fireplaces. It's changing the standard for electric. A full grate of life-size hardwood-cast logs with the life-like flames in the full harringbone brick look interior. Captures the charm of a wood-burning fireplace. This playful use of an industrial material is a unique way to give any space some stylish, industrial flair. The Mirage Flame Panel creates a see-through view of the flames straight to the back of the box with ThruView Full-depth design. Partially frosted acrylic panel is clearly better than a mirror, showing only dazzling flames and no reflections. Adjust the flame base color to red or blue and customize the firebox glow with a choice of warm hues, plus midnight mode. You can also adjust light level to suit your room and choose flicker effect for enhanced firelight. Installed Ambient Light Sensor automatically adjusts firebox light to suit the room day to night.

Designed to be direct-wired 208 or 220/240 volt circuit or to a 120 volts (plug kit included). The Powerful heater can put out from 4400 BTUs (120v) up to 8794 BTU's (220/240V). It produces quick and lasting heat for rooms up to 400 sqft (if wired to 120V)  or up to 800 sqft (if wired to 220/240V).

Adjust the flames, lighting and heat with an included smart remote. Dimplex Revillusion Portrait 36 inch Built-In Electric Firebox comes with front glass panel & plug in kit. It can be installed with front glass panel or open face. This enhances the traditional masonry open look of the fireplace.

Further customization options are available. For All Revillusion Accessories See "OPTIONAL ACCESSORIES" Tab.

Dimplex Revillusion RBF Series Available in 5 Sizes & 2 Interior Panel Options:

Weathered Concrete Interior: 24''; 30''; 36''36'' Portrait42''

Herringbone Brick Look Interior: 24''; 30''; 36''36'' Portrait42''

Features

  • Revillusion® Flame Technology. Flames are larger, brighter and more random, appearing from within the logs
  • Partially frosted Mirage™ Flame Panel is showing dazzling flames with no reflections
  • ThruView Full-depth Design - See clear through the flames to the back of the firebox for a more authentic experience
  • Mood Lighting customizes firebox glow with a choice of warm hues, plus midnight mode
  • Choose the flame base color from red or blue
  • Adjust light level and choose flicker effect for enhanced firelight
  • Ambient Light Sensor adjusts firebox light to suit the room day to night
  • Full grate of life-size hardwood-cast logs, tiered for greater depth
  • Full Harringbone Brick Look Interior Firebox
  • Heating Area 400 sqft (120V) up to 800 sqft (220/240V)
  • Heater Operated without flames
  • Flames can operate without heater
  • Direct-wired 208 or 220/240 volt circuit or to a 120 volts (plug kit included)
  • Included smart remote

    Best Design Styles

    • Classic; Traditional; Contemporary

    Included

    • Dimplex 36'' Revillusion Portrait Firebox | Herringbone Brick Look

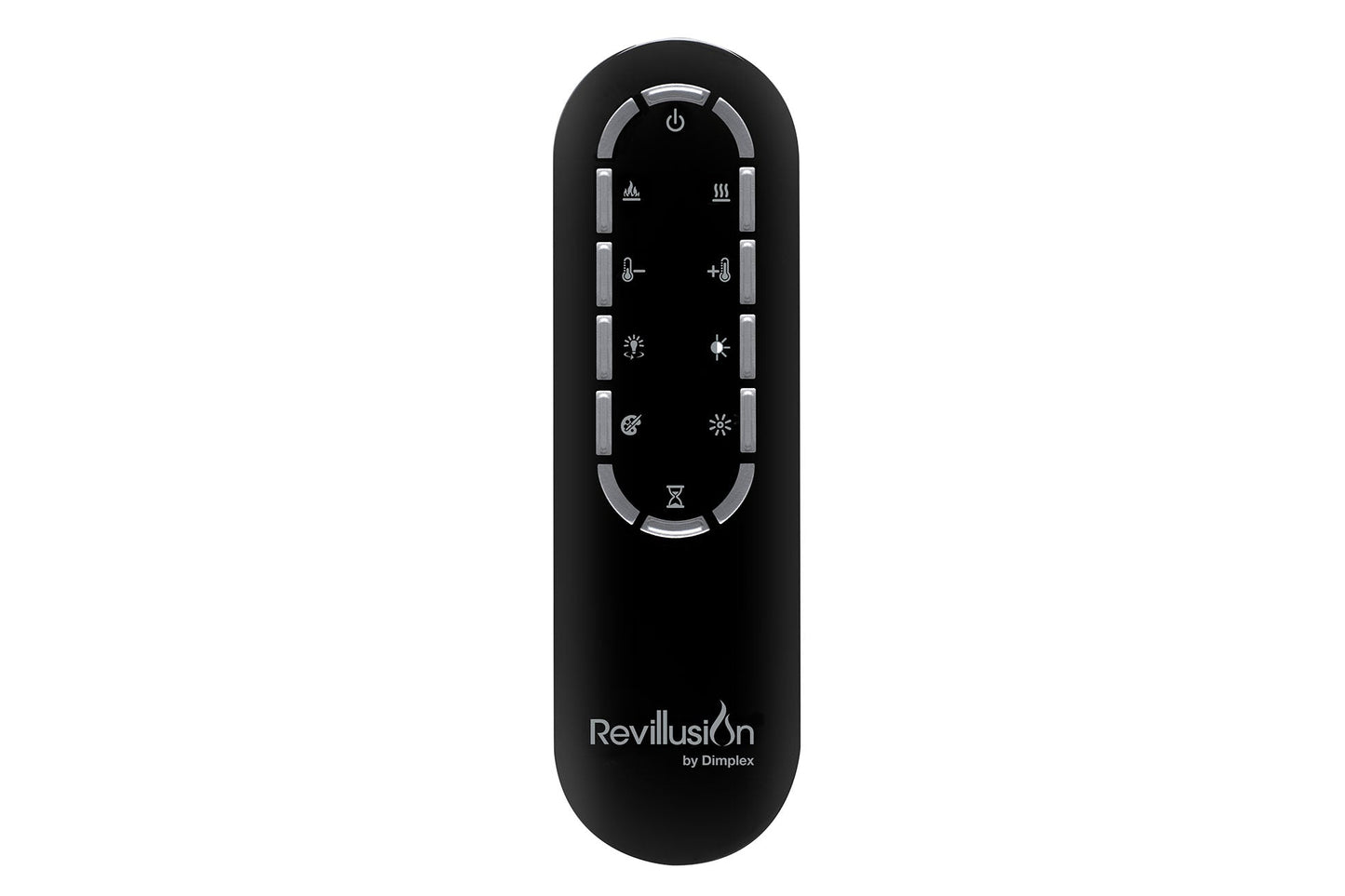

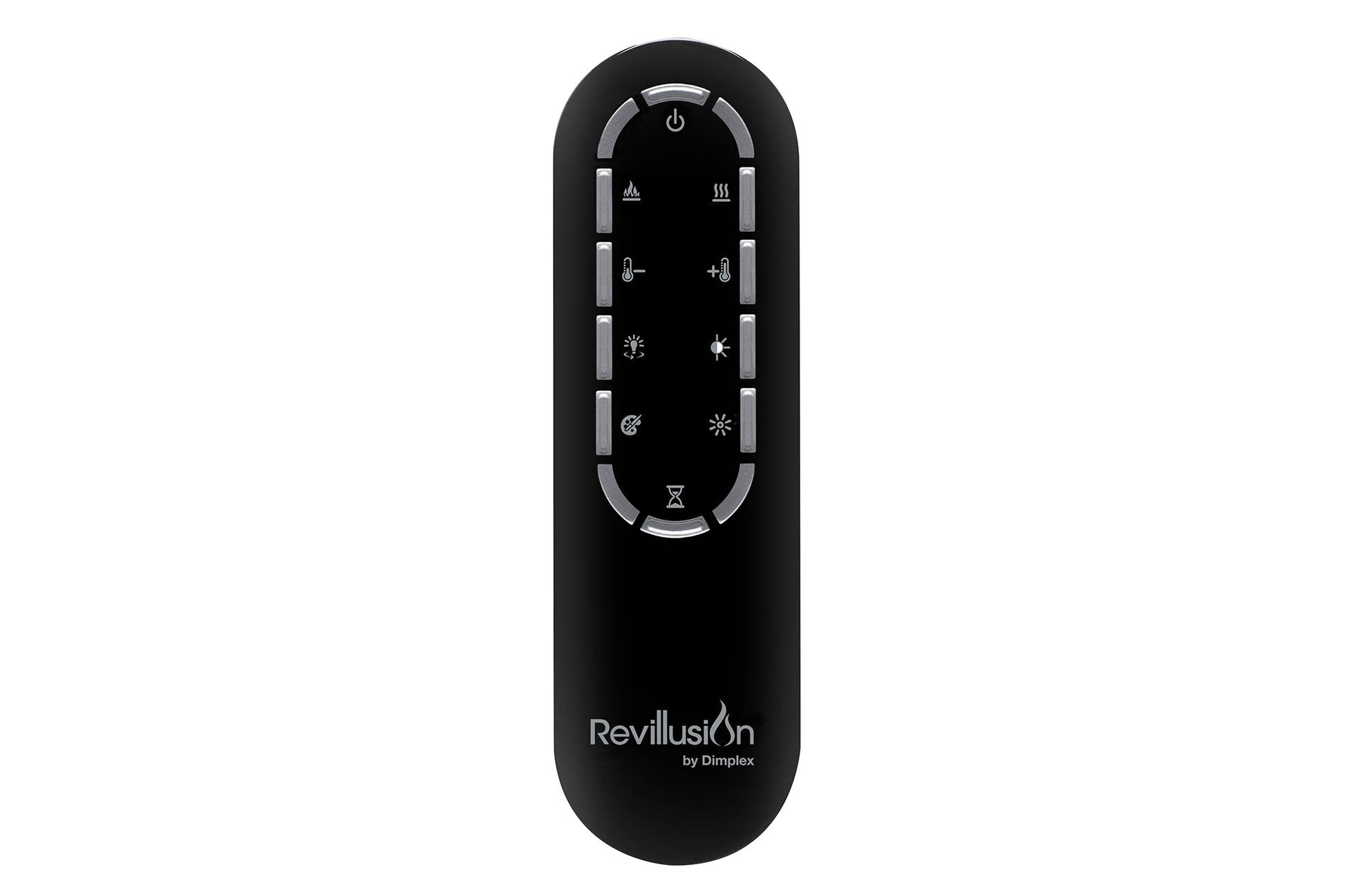

    • Mood Maker Remote
    • Front Glass Panel
    • 120 Volts Plug Kit
    • Log Set
    • 2 Year Warranty
    PRODUCT SPECS
    Brand Dimplex
    Finish/Color Black
    Media Bed Log Set
    Installation Built-in
    Weight 81 lbs
    Heat Location Front Top Vents
    Warranty 2 Years
    Remote Control Mood Maker
    ELECTRICAL SPECS
    Volts 120/208/240V
    Amps 10.8/9.5/10.7
    Watts 1300/1975/2575
    Wiring Wired In / Plug In
    Bulb Type LED
    BTUs 4400
    Heating Area Up to 400/800 sqft
    Certification



    PRODUCT DOWNLOADS

    DIMENSIONS:

    Fireplace: 37 1/8''W x 31"H x 12''D

    Viewing Area: 35 3/8''W x 27 1/4''H

    Framing / Rough Opening: 36 5/8''W x 30 5/8''H x 12 1/2''D

    DEMO VIDEO

    Dimplex  Revillusion Portrait Electric Firebox Demo Video

    DIMPLEX REVILLUSION OPTIONAL ACCESSORIES

     Log Set Options

    Life-Like Realogs: Llife-size hardwood-cast logs, tiered for greater depth. (comes with the unit)

    Fresh Cut Log Set(click here for this Accessory) Optional lifelike cut log set. The fresh cut logs let you enjoy the natural beauty of split firewood along with the anticipation of a fire that is ready to burn. Comes in addition to Included Reallogs.

    Birch Log Set(click here for this Accessory) Optional realistic birch logs. Capture the essence of a rustic escape with the faux birch wood log insert. Comes in addition to Included Reallogs.
