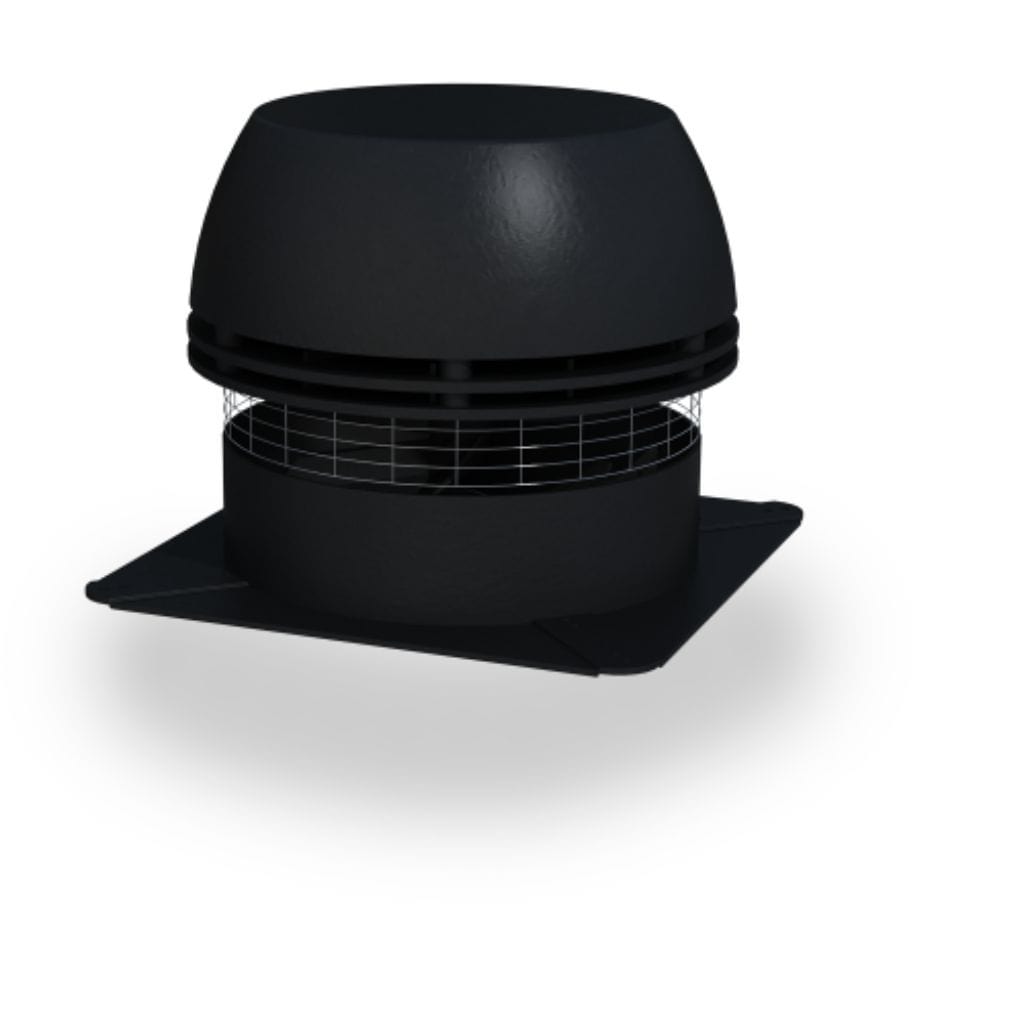

Enervex - RS16 Chimney Fans, Horizontal Discharge

EnervexSKU: 101.0899.1200
No reviews

Price:
Sale price$5,528.00

Description

Introducing the Enervex RS16 Chimney Fans with Horizontal Discharge – the pinnacle of chimney performance solutions. If you've ever experienced frustrating draft issues or concerns about smoke entering your living space, it's time to take control of your chimney's performance.

The Enervex RS16 Chimney Fan is engineered to revolutionize the way your chimney operates, ensuring a consistent and efficient draft. Say farewell to draft-related problems and the inconvenience of smoky interiors. This fan offers the assurance of smoke-free living and significantly enhances the safety of your home.

Benefits:

  1. Reliable Draft: Achieve a dependable, steady draft that ensures your chimney operates at peak efficiency.
  2. Eliminate Smoke: Bid farewell to smoke-related woes, and enjoy a clean and safe living environment.
  3. Enhanced Safety: Reduce the risk of backdrafts, making your home safer for you and your loved ones.
  4. Energy Efficiency: Optimize your chimney's efficiency and reduce energy consumption.
  5. User-Friendly: Easy installation and operation, ensuring a hassle-free experience.
  6. Durability: Built to last, this chimney fan offers longevity and consistent performance.
  7. Peace of Mind: Enjoy your fireplace without the worry of draft or smoke issues.

Standard Equipment:

  • 2"x4" or 4"x4" Junction Box with Cover and Conduit
  • Fiber Mat and Mounting Brackets
  • Bird Screen
  • 5 Amp Fan Speed Control

Common Companion Product:

  • Fan and Damper Control
  • Mechanical Fireplace Damper

Features:

  • Quiet Operation
  • Variable-speed motor
  • Use with gas-fired appliances
  • Comes in 4 sizes
  • Complete fan and control packages available from a single manufacturer
  • Low operating costs
  • 6-months Performance Guarantee



Specification

Capacities 0-1,800 CFM (0-3,000 m3/h)
Material Cast Aluminum Housing and Stainless Steel Axial Vane
Drive Axial Vane
Motor Variable Speed, TEFC, Class H
Max. Temp 575°F (300°C)
Warranty 2-Year Factory Warranty
10-Year Warranty Against Corrosion Perforation
Listings UL 378 Standard for Draft Equipment
UL 705 Standard for Power Ventilators
CSA3-B255-M81 Standard for Mechanical Flue Gas Exhauster



Model RS 016
Discharge  Horizontal
Fan Type Axial Vane
Motor Type Totally enclosed, Variable speed, Class H
Voltage   VAC 1x120V @ 60 Hz
Amperage   Amps 3.9
RPM  1600
CFM at 0.0Ps 1950
Motor Output  hp / kW  1/3 / 0.25
Weight lbs / kg 61 / 28
kg 28
Dimensions A in / mm 16.0 / 407
B x B in / mm 18.8 / 478
C in / mm 17.4 / 441
D in / mm 3.9 / 100
E in 15.4 / 391
Temperature Rating Interm. 575°F / 300°C
Cont. 482°F / 250°C

Downloads:

About The Manufacturer:

ENERVEX provides a full line of listed, fully integrated commercial venting and mechanical draft control systems for a truly one-stop design from boiler outlet to chimney termination. ENERVEX products are economical, environmentally sustainable, aesthetically pleasing, reliable, and up to code for commercial projects around the globe.
