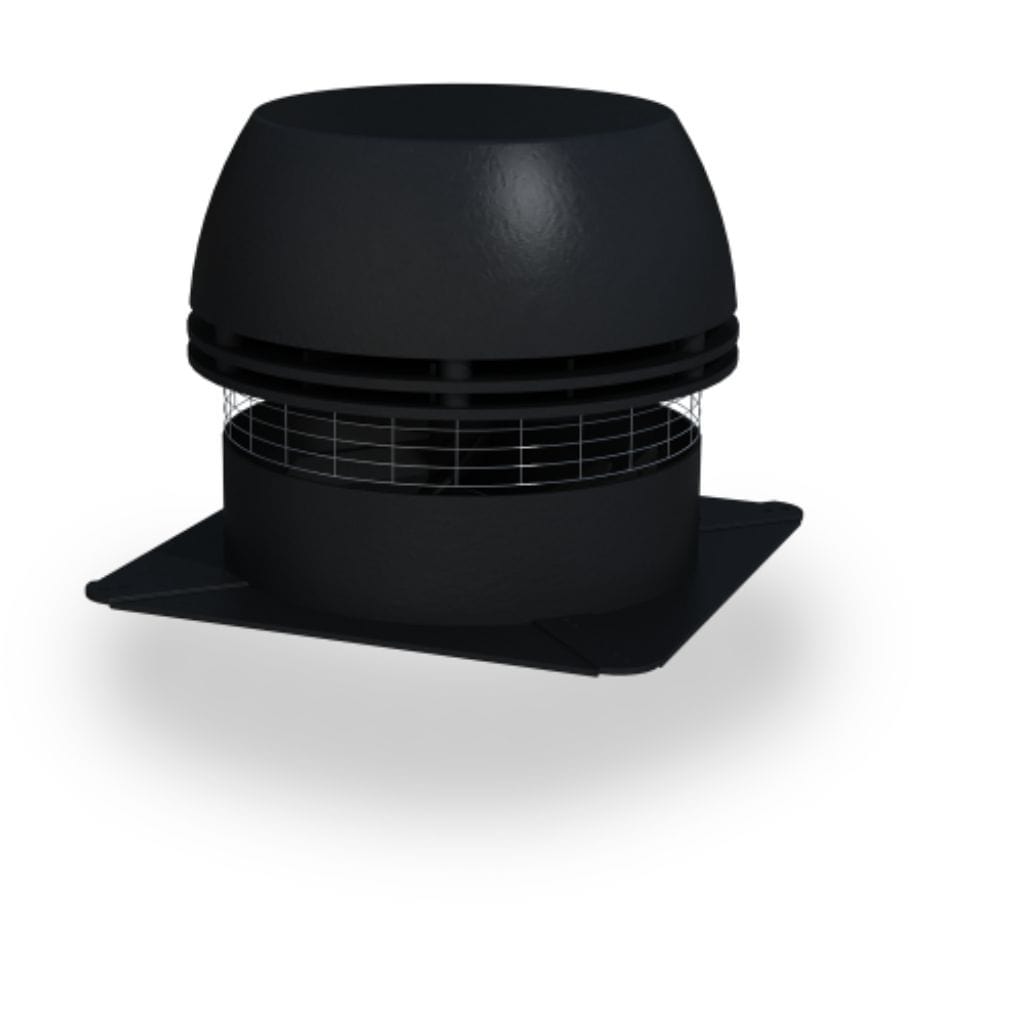

Enervex - RS12 Chimney Fans, Horizontal Discharge

EnervexSKU: 101.0499.1200
No reviews

Price:
Sale price$3,540.00

Description

Introducing the Enervex RS12 Chimney Fans with Horizontal Discharge, the definitive solution to your chimney ventilation needs. If you're looking to enhance your chimney's efficiency and reduce the risk of smoke-related issues, this is the product for you.

The Enervex RS12 Chimney Fan is designed to revolutionize the way your chimney works. No more struggling with draft problems or dealing with a smoky home. This chimney fan ensures that smoke is efficiently removed and that your fireplace or heating appliance performs at its best. It's a game-changer for anyone who values safety, comfort, and the joy of a smoke-free environment.

Benefits:

  1. Optimized Draft: Achieve consistent and reliable draft for your chimney system.
  2. Smoke Elimination: Say goodbye to annoying and dangerous smoke issues.
  3. Enhanced Safety: Minimize the risk of backdrafts, ensuring your home remains safe.
  4. Energy Savings: Increased chimney efficiency leads to reduced energy consumption.
  5. User-Friendly: Easy installation and operation, hassle-free and convenient.
  6. Durable Design: Built to last, providing long-term, worry-free performance.
  7. Peace of Mind: Enjoy your fireplace without the worry of smoke or draft problems.

Standard Equipment:

  • 2"x4" or 4"x4" Junction Box with Cover and Conduit
  • Fiber Mat and Mounting Brackets
  • Bird Screen
  • 5 Amp Fan Speed Control

Features:

  • Quiet Operation
  • Variable-speed motor
  • Use with gas-fired appliances
  • Comes in 4 sizes
  • Complete fan and control packages available from a single manufacturer
  • Low operating costs
  • 6-months Performance Guarantee



Specification:

Capacities 0-1,800 CFM (0-3,000 m3/h)
Material Cast Aluminum Housing and Stainless Steel Axial Vane
Drive Axial Vane
Motor Variable Speed, TEFC, Class H
Max. Temp 575°F (300°C)
Warranty 2-Year Factory Warranty
10-Year Warranty Against Corrosion Perforation
Listings UL 378 Standard for Draft Equipment
UL 705 Standard for Power Ventilators
CSA3-B255-M81 Standard for Mechanical Flue Gas Exhauster



Motor Type Totally enclosed, Variable speed, Class H
Voltage   VAC 1x120V @ 60 Hz
Amperage   Amps 1.2
RPM  1600
CFM at 0.0Ps 950
Motor Output  hp / kW   1/10 / 0.08
Weight lbs / kg 37 / 17
kg 17
Dimensions A in / mm 11.5 / 292
B x B in / mm 14.3 / 364
C in / mm 13.5 / 344
D in / mm 3.3 / 85
E in 11.6 / 294
Temperature Rating Interm. 575°F / 300°C
Cont. 482°F / 250°C







Downloads:

About The Manufacturer:

ENERVEX provides a full line of listed, fully integrated commercial venting and mechanical draft control systems for a truly one-stop design from boiler outlet to chimney termination. ENERVEX products are economical, environmentally sustainable, aesthetically pleasing, reliable, and up to code for commercial projects around the globe.
