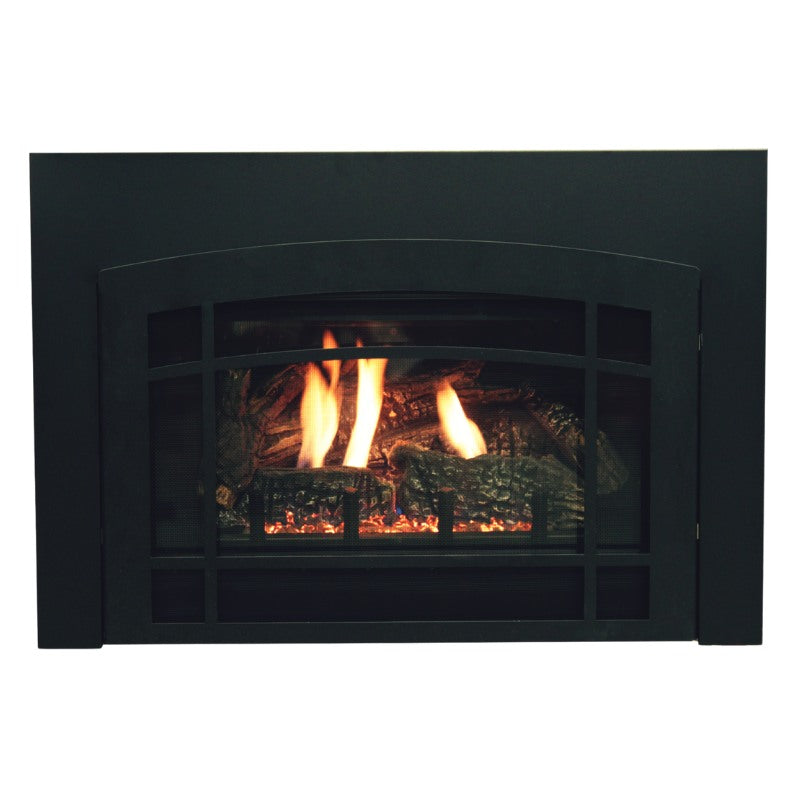

Empire Innsbrook Clean Face Direct Vent Gas Insert
Upgrade Your Wood-Burning Fireplace with Efficient Zone Heating
A Direct-Vent Fireplace Insert transforms your existing wood-burning fireplace into an efficient, gas-fired heat source designed to improve comfort and reduce energy loss.
Traditional wood-burning fireplaces send a significant amount of heat up the chimney, creating negative pressure inside the home. This draws cold outdoor air in through doors and windows, often making your home feel colder—not warmer. Wood fires can also produce ash, smoke, and fumes that contribute to mess and may aggravate allergies.
Direct-vent fireplace inserts are classified as zone heating appliances, meaning they heat the space you actually use instead of wasting energy throughout the home. Unlike central furnaces—which can lose 20–30% of heat through ductwork and distribute warmth to unoccupied rooms—zone heating delivers warmth directly into the living space. This allows you to lower your home’s thermostat and efficiently heat the room you use most.
Efficient Venting & Easy Installation
The direct-vent system uses 3-inch flexible co-linear vent pipes—one draws fresh air from outside the home, while the other safely exhausts combustion gases outdoors. This flexible metal venting allows for easy installation into both site-built and manufactured fireplaces.
For added safety, fireplace barrier screens—required for all direct-vent systems—help protect you and your family from accidental contact with the hot glass.
Flexible Ignition & Reliable Performance
The Innsbrook Clean Face is available in **three sizes—small, medium, and large—**making it easy to find the right fit for most wood-burning fireplaces. Choose between:
-
Millivolt ignition with a standing pilot, which continues to provide heat during power outages
-
Intermittent Pilot ignition, designed to reduce energy consumption while still allowing pilot operation during outages
Realistic Flames & Traditional Styling
Innsbrook Direct-Vent Inserts feature optional liners and hand-painted ceramic fiber log sets positioned over a variable flame height burner for a beautifully traditional appearance. With input ratings of 20,500 BTUs, 26,000 BTUs, and 28,500 BTUs, the unique Slope Glaze Burner produces natural, flickering flames that create warmth you can see and feel—bringing comfort to your home from the ground up.

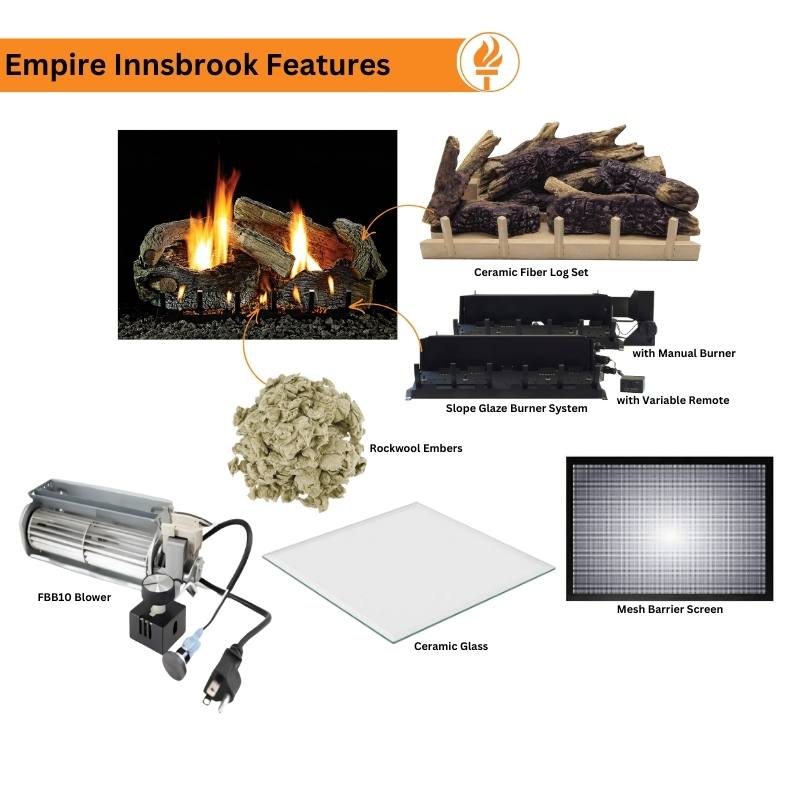

Innsbrook Clean Face Direct-Vent Fireplace Insert Features
The Innsbrook Clean Face Direct-Vent Fireplace Insert is available in both Millivolt and Electronic Ignition configurations, offering reliable performance, flexible control options, and classic styling designed to upgrade existing wood-burning fireplaces.
Millivolt Models — DVC26IN31N
-
Slope Glaze burner system produces natural, flickering flames
-
Ceramic fiber log set for a realistic, traditional appearance
-
Blower included for improved heat circulation
-
Mesh barrier safety screen for added protection
-
Optional interior liners available
-
Designed to install as an insert into an existing fireplace
-
Venting: 3" x 3" flexible co-linear venting (refer to installation manual)
-
Ceramic glass viewing area: 14 1/8" H x 28 1/4" W
-
Minimum fireplace opening required:
-
Millivolt control valve with on/off switch
-
Remote ready
-
BTU input (Max / Min): 26,000 / 17,000
-
Standing pilot ignition allows operation during power outages
Electronic Ignition Models — DVC26IN71P
-
Slope Glaze burner system for realistic flame movement
-
Ceramic fiber log set included
-
Blower included for enhanced comfort
-
Mesh barrier safety screen
-
Optional interior liners available
-
Designed to install as an insert into an existing fireplace
-
Venting: 3" x 3" flexible co-linear venting (refer to installation manual)
-
Ceramic glass viewing area: 14 1/8" H x 28 1/4" W
-
Minimum fireplace opening required:
-
Electronic control valve with on/off switch
-
Remote ready
-
BTU input (Max / Min): 26,000 / 20,000
-
Intermittent pilot ignition for improved energy efficiency

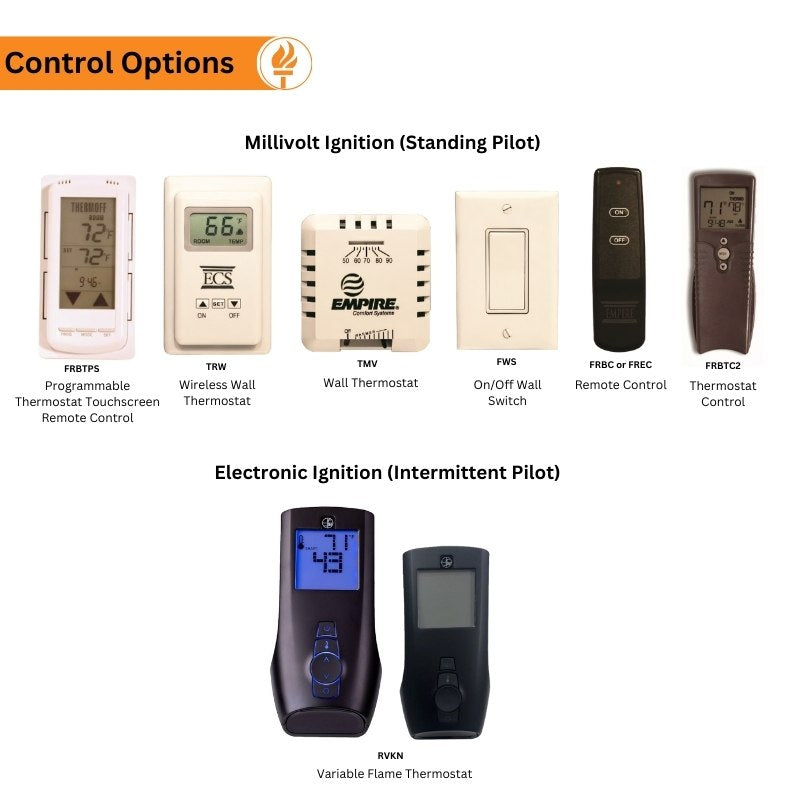

Control Options
Lighting and managing a wood fire can be time-consuming and messy. The Innsbrook Clean Face insert delivers instant ignition and consistent heat at the touch of a button, even during power outages on Millivolt models.
Remote controls are not included standard and may be selected based on ignition type.
Millivolt Ignition (Standing Pilot)
-
FRBC – On/Off Remote Control (battery operated)
-
FRBTC2 – Thermostat Remote Control (battery operated)
-
FRBTPS – Programmable Touchscreen Thermostat Remote (battery operated)
-
TRW – Wireless Wall Thermostat
-
TMV – Wall Thermostat (reed switch)
-
FWS – On/Off Wall Switch
Electronic Ignition (Intermittent Pilot)
Required Surrounds & Decorative Options
All direct-vent inserts require a surround or decorative front to complete the installation.

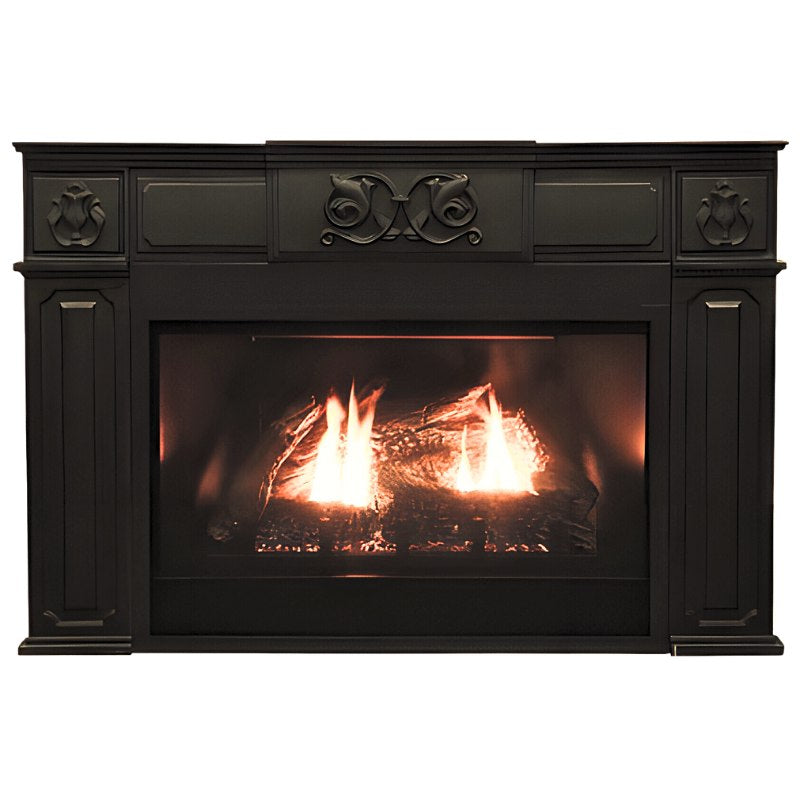

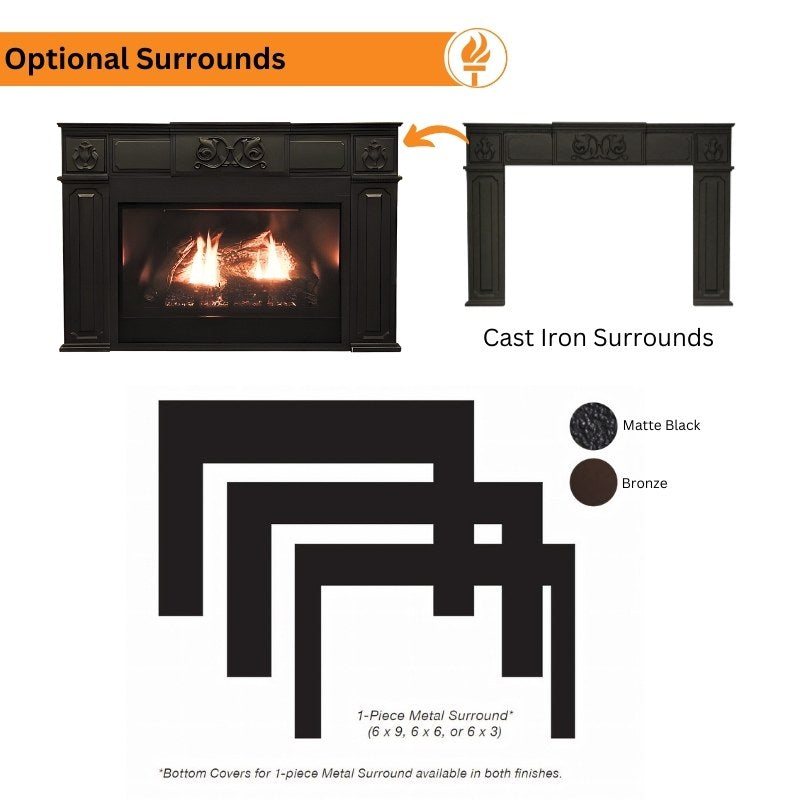

Surround Options
Optional bottom cover available for installations where the insert does not rest directly on the hearth.
For larger fireplace openings, an optional shroud (48" W x just under 38" H) provides a clean transition between the insert and existing fireplace.

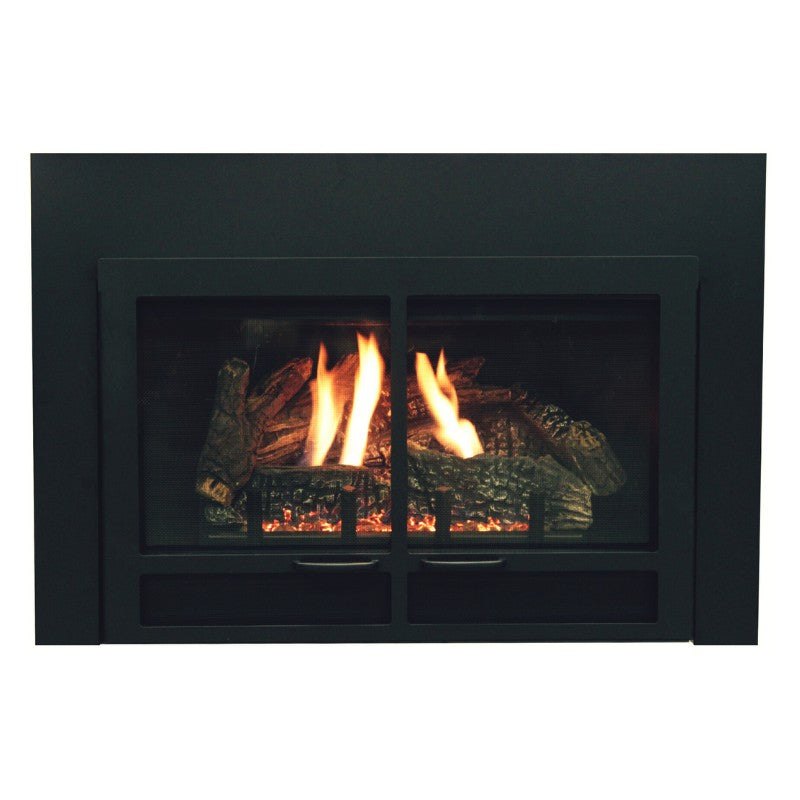

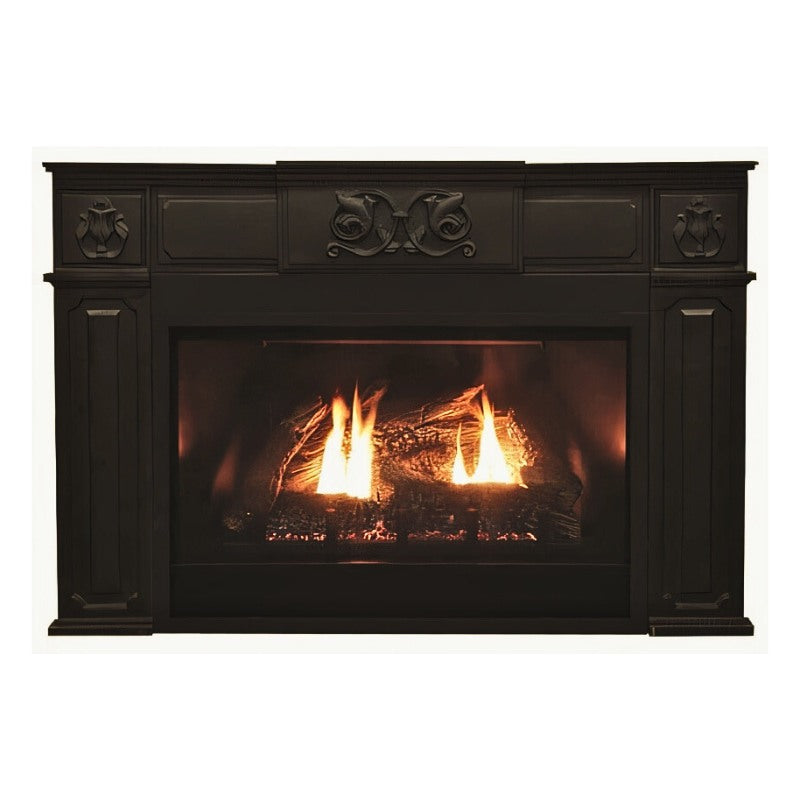

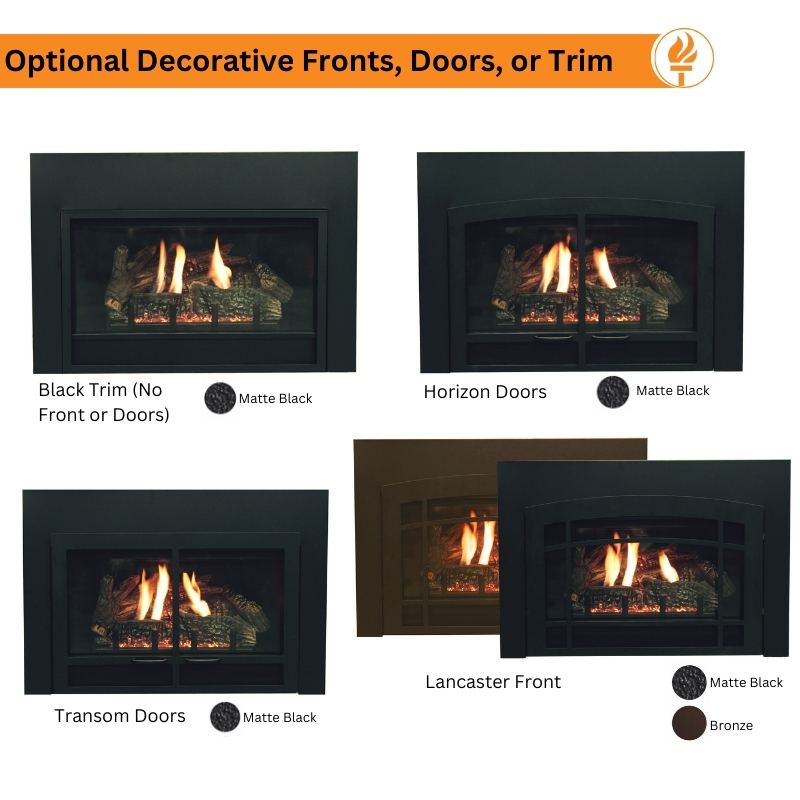

Decorative Fronts, Doors & Trim
Available in Black or Bronze finishes, decorative fronts attach easily to a one-piece metal frame (Matte Black or Bronze). All fronts include protective barrier screens.

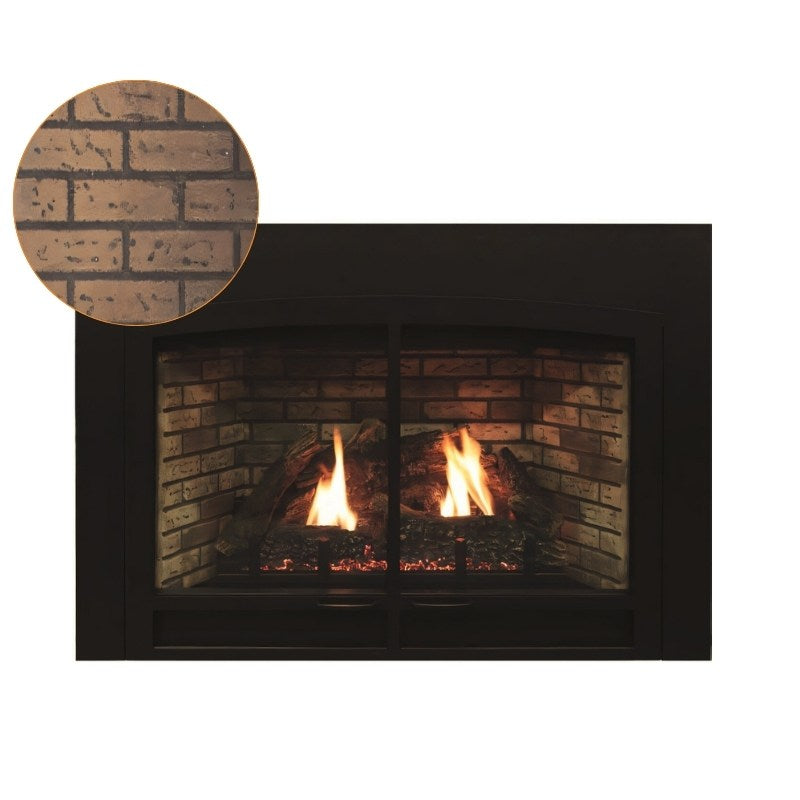

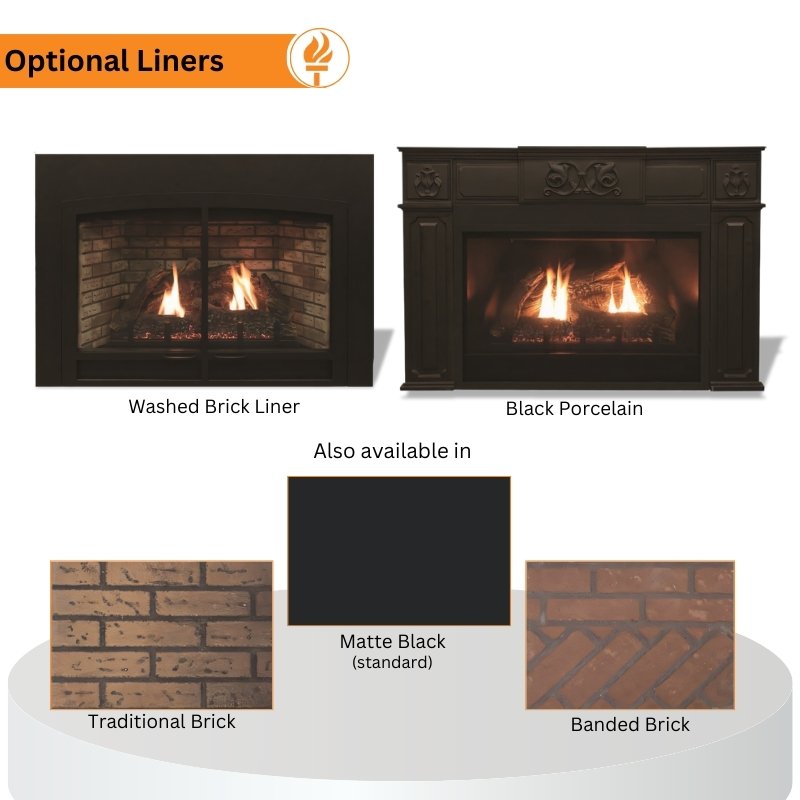

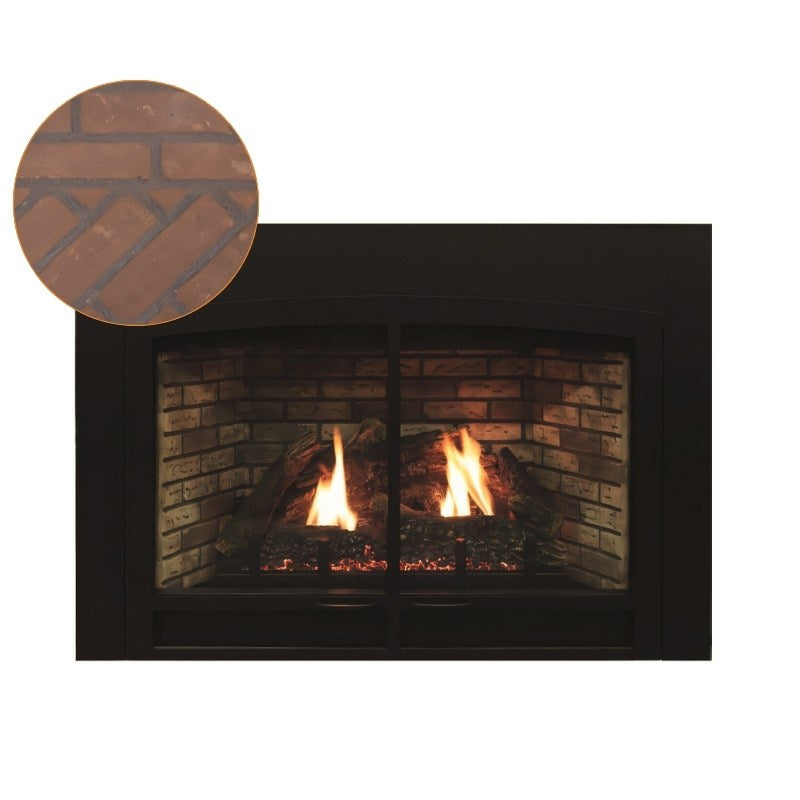

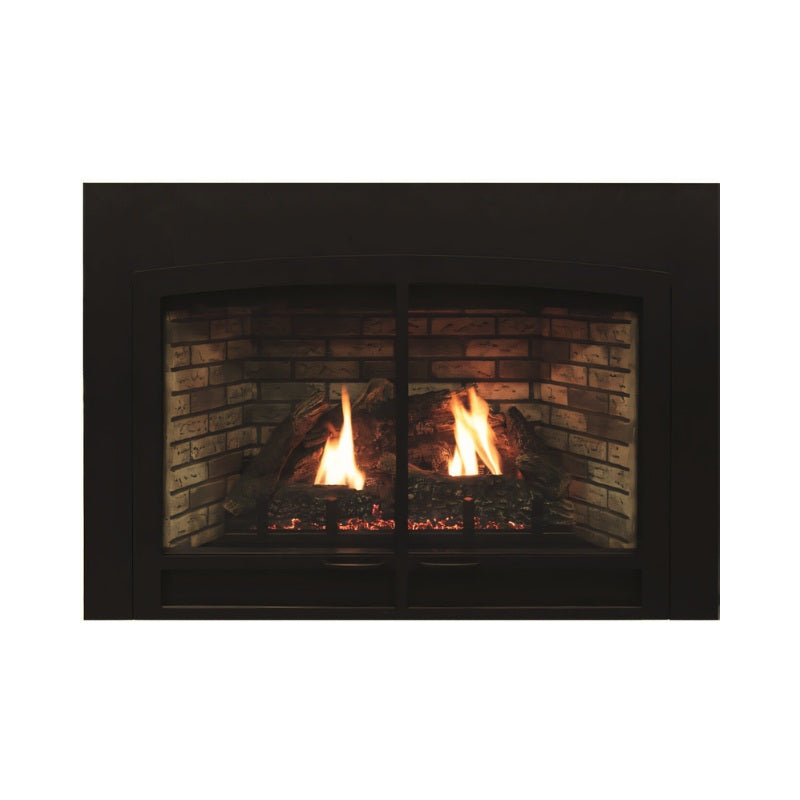

Interior Liner Options — DVC26IN
Enhance the firebox interior with optional liners:
-
Traditional Brick
-
Banded Brick
-
Washed Brick
-
Black Porcelain
