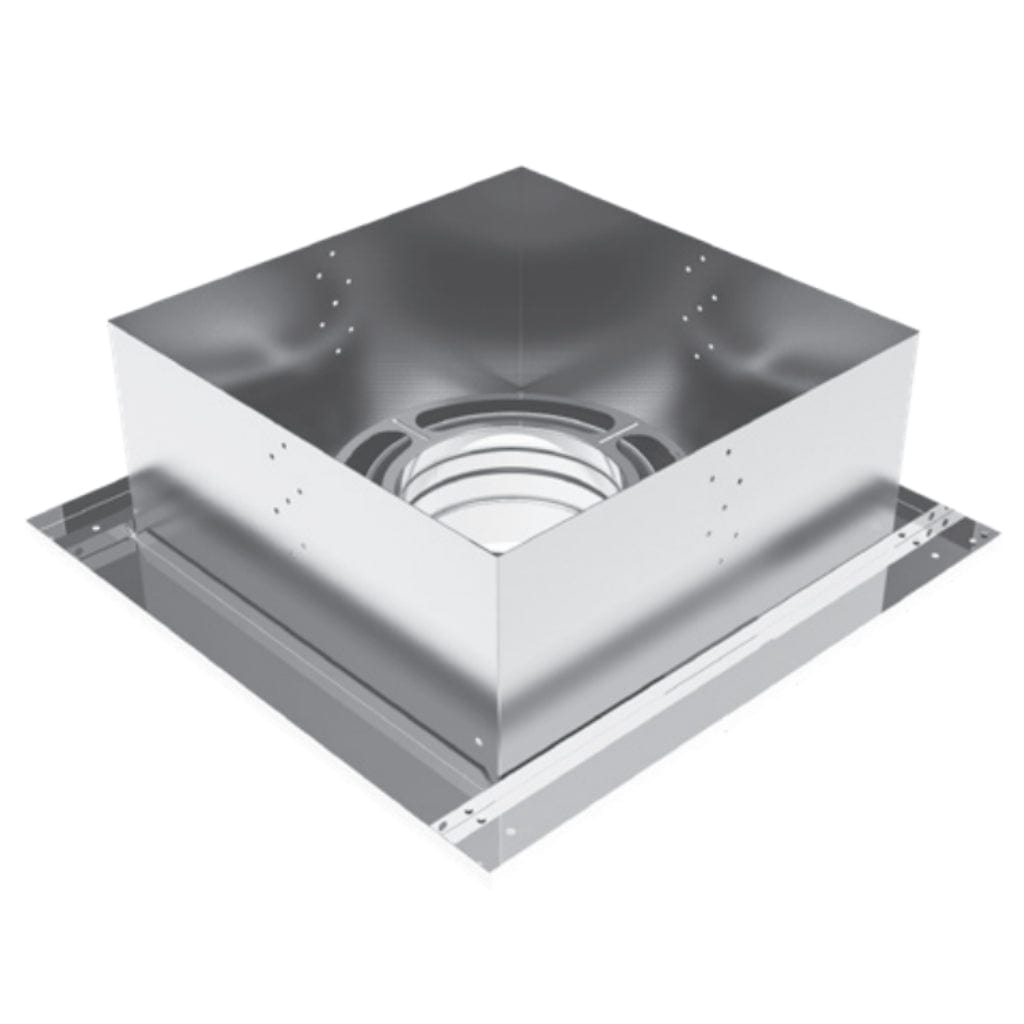

DuraVent - DuraPlus 6"-8" Diameter Flat Ceiling Support Box

DuraVentSKU: 6DP-FCS
No reviews

Diameter Size: 6"
Price:
Sale price$164.00

Description

When it comes to heating your home efficiently and safely, the DuraVent DuraPlus Ceiling Support Box is your trusted partner. Crafted to perfection, this ingenious addition to your chimney system redefines stove performance and offers ultimate peace of mind.

Step into a world where fireside coziness meets cutting-edge engineering. Designed to keep cool on the outside while delivering a hot draft within, the DuraPlus Ceiling Support Box elevates stove efficiency to new heights. Say goodbye to heat loss and hello to a snug, warm home.

But it doesn't stop there. Our DuraVent DuraPlus is more than just a chimney component; it's a guardian of fire safety. With a triple-wall construction featuring two insulating layers – a refractory blanket and an insulating air space – this support box ensures your chimney remains in top shape. No more worrying about common hot spots, thanks to our secure insulation that's here to stay. And in the unlikely event of a creosote fire, our compressible blanket insulation allows the chimney liner to expand outwardly, averting potential disasters.

Benefits:

  • Efficiency Amplified: Experience the joy of a hotter draft and superior stove efficiency, keeping your home toasty and your fuel consumption in check.

  • Fire Safety First: With rigorous UL testing, our support box can withstand extreme conditions, ensuring your chimney and home stay safe.

  • Easy Installation: The built-in twist-lock feature guarantees a hassle-free setup, providing a secure connection between the support box and chimney.

  • Versatile Compatibility: Supporting up to 35 feet of DuraPlus chimney pipe, you can count on this support box to meet your needs.

  • Customization at Your Fingertips: While it comes unpainted, you have the option to personalize it with high-temperature paint to match your home decor.

  • Seamless Integration: The included 2-inch wide trim collar ensures a sleek and polished look.

  • Adapter Options: Explore our range of adapters in the DVL and DuraBlack section to enhance your chimney system further.



Features:

  • Supports chimney pipe and provides a positive connection between support box and chimney with a built-in twist-lock.
  • Designed for installation in flat ceilings only.
  • Supports up to 35’ of DuraPlus chimney pipe.
  • Use an adapter to attach DVL or DuraBlack to the support box.
  • Not painted, but can be painted with high-temperature paint.
  • A 2” wide trim collar is included.
  • For adapters, see DVL and DuraBlack section.

Materials and Construction:

  • .016” 430 stainless steel outer wall
  • .016” 430 stainless steel inner liner.
  • .018” galvanized steel outer wall.
  • .018” aluminized steel intermediate liner.
  • Insulated layers plus ventilated air space.
  • Locks tightly with a precision twist-lock connection.



Specifications:




Model 6DP-FCS 7DP-FCS 8DP-FCS
Diameter 6" (inner) 7" (inner) 8" (inner)
Dimensions 14.25"(W) x 8.5"(H) 14.25"(W) x 8.5"(H) 14.25"(W) x 8.5"(H)
Clearances 2" clearance to combustible
Listings UL Listed to UL 103HT (MH7399).
Warranty Limited-lifetime warranty



Downloads:

About the Manufacturer:

Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro.
