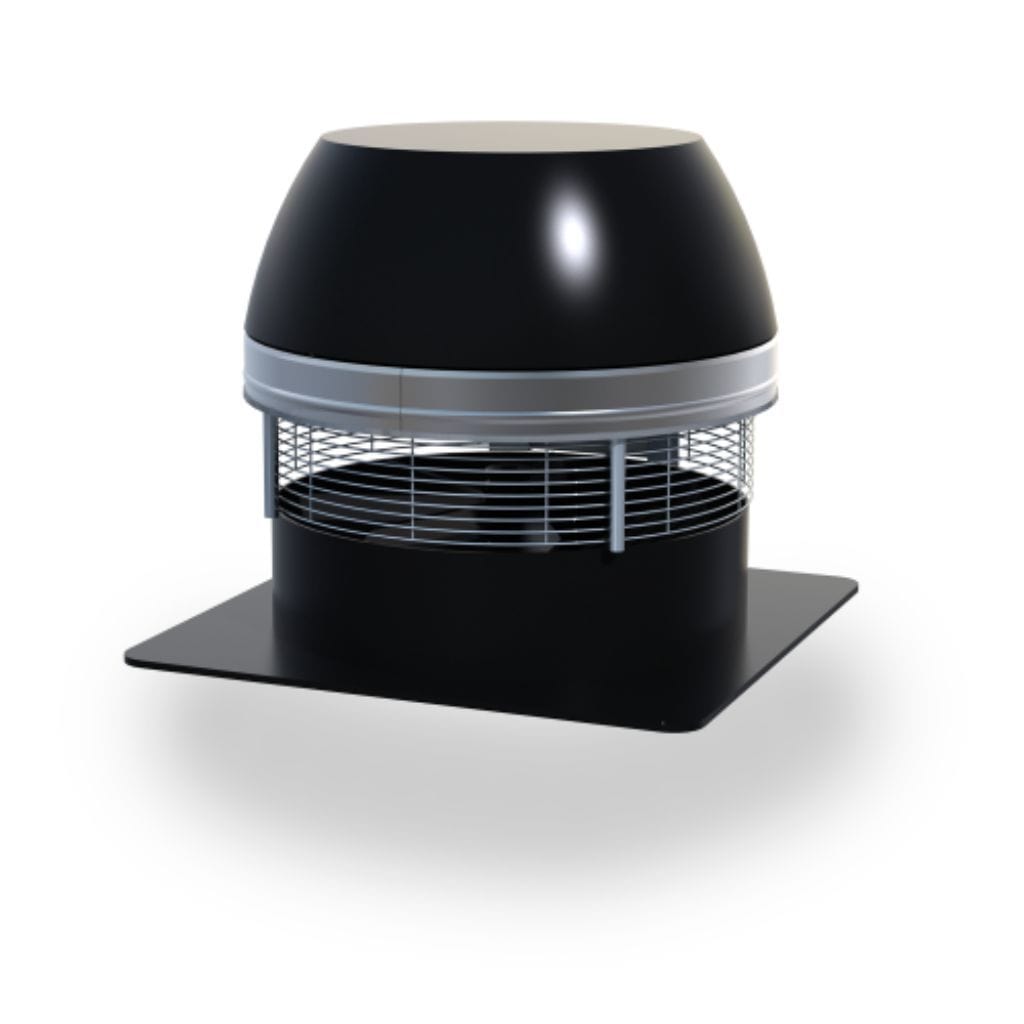

Enervex - RSHT 016, Chimney Fans, Horizontal Discharge

EnervexSKU: 102.0899.1200
No reviews

Price:
Sale price$6,481.00

Description

When it comes to optimizing your chimney system for horizontal discharge applications, there's one name that stands above the rest—Enervex RSHT 016 Chimney Fans. These fans are the pinnacle of precise draft control, offering a safety and efficiency boost that's nothing short of transformative.

Manufactured with the utmost dedication to craftsmanship and quality, Enervex RSHT 016 Chimney Fans are engineered to meet the demands of the most challenging environments. These fans are the go-to choice for commercial kitchens, industrial settings, and businesses that require exceptional draft control to ensure a safe and efficient working space.

Benefits:

  1. Unparalleled Draft Control: Achieve unparalleled draft control, making sure your chimney system operates flawlessly.
  2. Tailored for Horizontal Discharge: Expertly designed for horizontal discharge, these fans are tailored to deliver peak performance.
  3. Superior Craftsmanship: These fans are crafted with precision engineering and high-quality materials for unmatched reliability.
  4. Banish Backdrafting: Bid farewell to the risk of backdrafting, guaranteeing a safer indoor environment.
  5. Eliminate Smoke Spillage: Stop smoke spillage in its tracks, ensuring your chimney system performs optimally.
  6. Commercial-Grade Reliability: Perfect for the demanding conditions of commercial kitchens and industrial setups.
  7. Professional's Choice: Enervex RSHT 016 Chimney Fans are the preferred choice for professionals who expect nothing less than excellence in chimney performance.

Standard Equipment:

  • 2"x4" or 4"x4" Junction Box with Cover and Conduit
  • Fiber Mat and Mounting Brackets
  • Bird Screen
  • 5 Amp FSC Fan Speed Control

Common Companion Product:

  • Solid Fuel Fan Control
  • Manual Fireplace Damper

Features:

  • Quiet Operation
  • Variable-speed motor
  • Use with gas-fired appliances
  • Comes in 4 sizes
  • Complete fan and control packages available from a single manufacturer
  • Low operating costs
  • 6-months Performance Guarantee

Specification:

Capacities 0-1,500 CFM (450-2,550 m3/h)
Material Stainless Steel Housing and Axial Vane
Drive Axial Vane
Motor Variable Speed, TEFC, Class H
Max. Temp Interm. 1400° (760°C), Contin. 1000°F (540°C)
Warranty 2-Year Factory Warranty
10-Year Warranty Against Corrosion Perforation
Listings UL 378 Standard for Draft Equipment
UL 705 Standard for Power Ventilators
CSA3-B255-M81 Standard for Mechanical Flue Gas Exhauster



Model RSHT 016
Discharge  Horizontal
Fan Type Axial Vane
Motor Type Totally enclosed, Variable speed, Class F
Voltage   VAC 1x120V @ 60 Hz
Amperage   Amps 4.40
RPM  1580
CFM at 0.0Ps 1460
Motor Output  hp / kW  0.47 / 0.35
Weight lbs / kg 47.2 / 21.4
Dimensions A in / mm 15.7 / 400
B x B in / mm 18.8 / 478
C in / mm 17.4 / 441
D in / mm 3.9 / 100
E in 15.0 / 380
Temperature Rating Interm. 1400ºF / 760ºC
Cont. 1000ºF / 538ºC







Downloads:

About The Manufacturer:

ENERVEX provides a full line of listed, fully integrated commercial venting and mechanical draft control systems for a truly one-stop design from boiler outlet to chimney termination. ENERVEX products are economical, environmentally sustainable, aesthetically pleasing, reliable, and up to code for commercial projects around the globe.
